ENW89837A5KF - Panasonic

Description: PANASONIC ELECTRONIC COMPONENTS - ENW89837A5KF - BLE MODULE, V4.2, 2.7-3.6V

Download ENW89837A5KF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ENW89837A5KF - Panasonic - PCB symbol
click to zoom
PCB Footprints

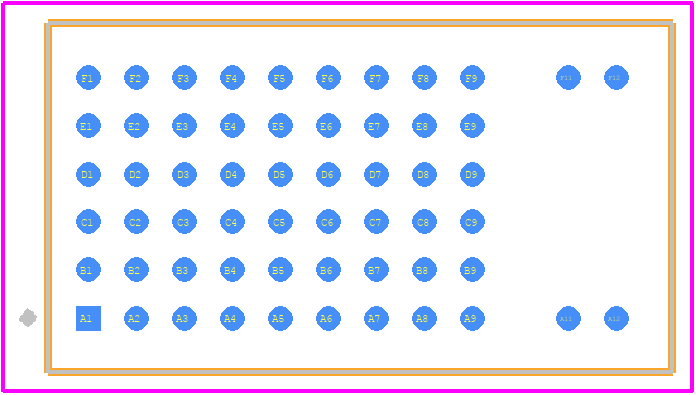

ENW89837A5KF - Panasonic PCB footprint - Other - Other - ENW89837A5KF-1
click to zoom
3D Models
ENW89837A5KF - Panasonic - 3D model - Other - ENW89837A5KF-1
click to zoom

ENW89837A5KF Details

  • Manufacturer Part Number:

    ENW89837A5KF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MODULE

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    0

  • JESD-30 Code:

    R-XXMA-X

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    250

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.8 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UNSPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    50

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

ENW89837A5KF Frequently Asked Questions (FAQs)

  • The recommended storage temperature for ENW89837A5KF is -40°C to 125°C.
  • Yes, ENW89837A5KF is compatible with lead-free soldering, making it suitable for RoHS-compliant designs.
  • The maximum operating frequency for ENW89837A5KF is 2.4 GHz, making it suitable for Bluetooth, Wi-Fi, and other wireless applications.
  • Yes, ENW89837A5KF is designed to operate in high-temperature environments, with a maximum operating temperature of 125°C.
  • The typical impedance of ENW89837A5KF is 50 ohms, making it suitable for impedance-matched circuits.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ENW89837A5KF Overview

Use the download button to access the ENW89837A5KF schematic symbol, PCB footprint, and 3D model.
