ENW89854A1KF - Panasonic

Description: Bluetooth Bluetooth v5.0 Transceiver Module Integrated, Chip Surface Mount

Download ENW89854A1KF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

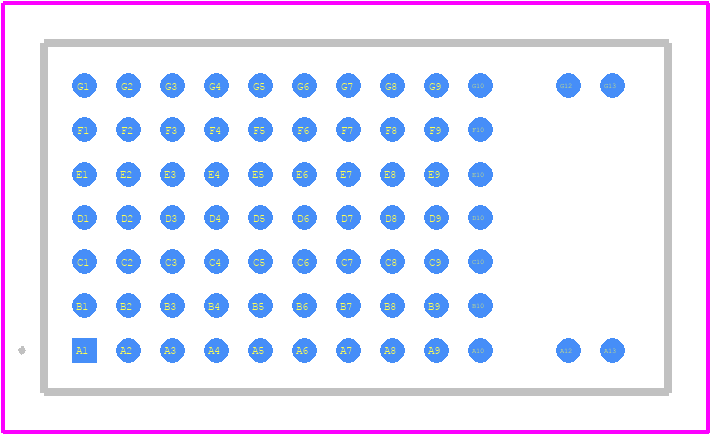

ENW89854A1KF - Panasonic PCB footprint - Other - Other - 15.6 x 8.7 x 2.0 mm
click to zoom
3D Models
ENW89854A1KF - Panasonic  - 3D model - Other - 15.6 x 8.7 x 2.0 mm
click to zoom

ENW89854A1KF Details

  • Manufacturer Part Number:

    ENW89854A1KF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-74

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Panasonic Electronic Components

  • JESD-30 Code:

    R-XXMA-X74

  • Length:

    15.6 mm

  • Number of Terminals:

    74

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    2.3 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UNSPECIFIED

  • Width:

    8.7 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

ENW89854A1KF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the antenna away from noisy components and ensure a 50-ohm impedance matching network.
  • Implement a robust antenna design, ensure proper PCB layout, and optimize the transmission power and data rate according to the application's requirements.
  • The maximum operating temperature range for the ENW89854A1KF is -40°C to +85°C. However, it's recommended to operate within -20°C to +70°C for optimal performance.
  • Yes, the ENW89854A1KF is suitable for battery-powered devices due to its low power consumption. However, ensure proper power management and consider using a low-dropout regulator to minimize power loss.
  • Use a logic analyzer or oscilloscope to debug the serial interface. Check the power supply, clock signal, and reset pin for proper operation. Consult the datasheet and application notes for troubleshooting guidelines.
