EP2-19+ - Mini-Circuits

Description: Signal Conditioning 2 Ways MMIC Power Splitter, 15000 - 25000 MHz, 50?

Download EP2-19+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

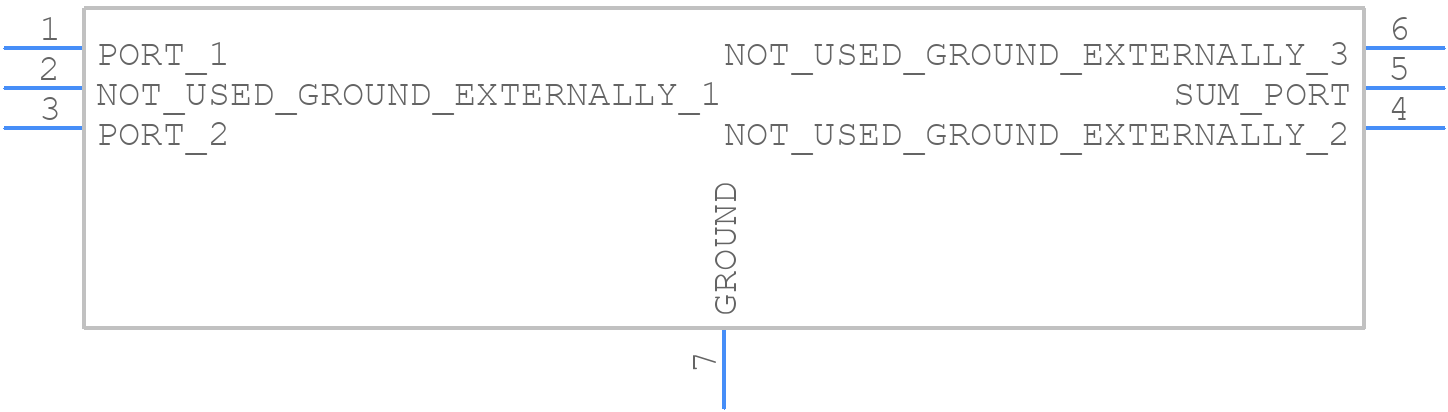

Symbol
EP2-19+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
EP2-19+ - Mini-Circuits PCB footprint - Small Outline No-lead - Small Outline No-lead - MC1630-1_2023-2
click to zoom
3D Models
EP2-19+ - Mini-Circuits - 3D model - Small Outline No-lead - MC1630-1_2023-2
click to zoom

EP2-19+ Details

  • Manufacturer Part Number:

    EP2-19+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-6

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    27.99 dBm

  • Insertion Loss-Max:

    1.4 dB

  • Isolation-Min:

    14 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    25000 MHz

  • Operating Frequency-Min:

    15000 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC6(UNSPEC)

  • RF/Microwave Device Type:

    SPLITTER AND COMBINER

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • VSWR-Max:

    1.5

EP2-19+ Frequently Asked Questions (FAQs)

  • The maximum power handling of EP2-19+ is 20 W, but it's recommended to derate the power to 10 W for continuous operation to ensure reliability and prevent overheating.
  • Yes, EP2-19+ can be used as both a splitter and a combiner. As a splitter, it can divide an input signal into two equal outputs, and as a combiner, it can combine two input signals into a single output.
  • The phase balance of EP2-19+ is typically within ±5°, which means that the phase difference between the two output ports is within 5 degrees of each other.
  • Yes, EP2-19+ is designed to operate up to 19 GHz, making it suitable for high-frequency applications such as microwave and millimeter-wave systems.
  • EP2-19+ is designed to operate over a temperature range of -55°C to +125°C, but it's recommended to derate the power handling at high temperatures to prevent overheating and ensure reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EP2-19+ Overview

Use the download button to access the EP2-19+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EP2-1, or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
