EP2C+ - Mini-Circuits

Description: Signal Conditioning PWR SPLTR CMBD 50 Ohms 1.8 GHz to 12.5 GHz

Download EP2C+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

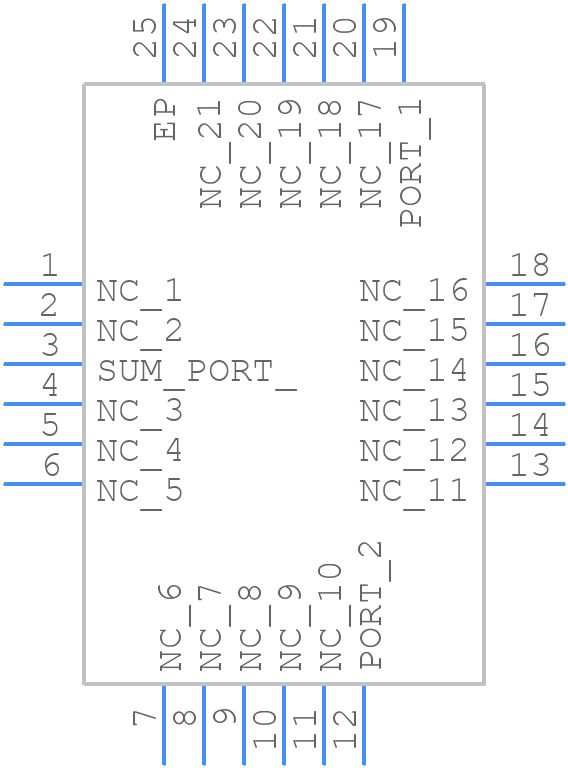

EP2C+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
EP2C+ - Mini-Circuits PCB footprint - Other - Other - EP2C+-2
click to zoom
3D Models
EP2C+ - Mini-Circuits - 3D model - Other - EP2C+-2
click to zoom

EP2C+ Details

  • Manufacturer Part Number:

    EP2C+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Additional Feature:

    ISOLATION-MIN (DB):7

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    32.67 dBm

  • Insertion Loss-Max:

    2.1 dB

  • Isolation-Min:

    7 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    12500 MHz

  • Operating Frequency-Min:

    1800 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • RF/Microwave Device Type:

    SPLITTER AND COMBINER

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • VSWR-Max:

    1.6

EP2C+ Frequently Asked Questions (FAQs)

  • The EP2C+ can operate from -40°C to +85°C, but it's recommended to derate the power handling by 1 dB for every 10°C above 50°C.
  • The EP2C+ has a nominal impedance of 50 ohms. To impedance match, use a pi-network or a T-network with capacitors and inductors to achieve a conjugate match.
  • The EP2C+ can handle up to 2 watts of continuous power, but it's recommended to derate the power handling based on the operating frequency and temperature.
  • Yes, the EP2C+ is designed for high-reliability applications and meets the requirements of MIL-PRF-39007. However, it's recommended to consult with Mini-Circuits' application engineers for specific requirements.
  • Use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the pads. Avoid overheating the component or using excessive solder.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EP2C+ Overview

Use the download button to access the EP2C+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
