EP2RCW+ - Mini-Circuits

Description: Signal Conditioning 2 Ways MMIC Power Splitter, DC-8000 MHZ, 50ohm

Download EP2RCW+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

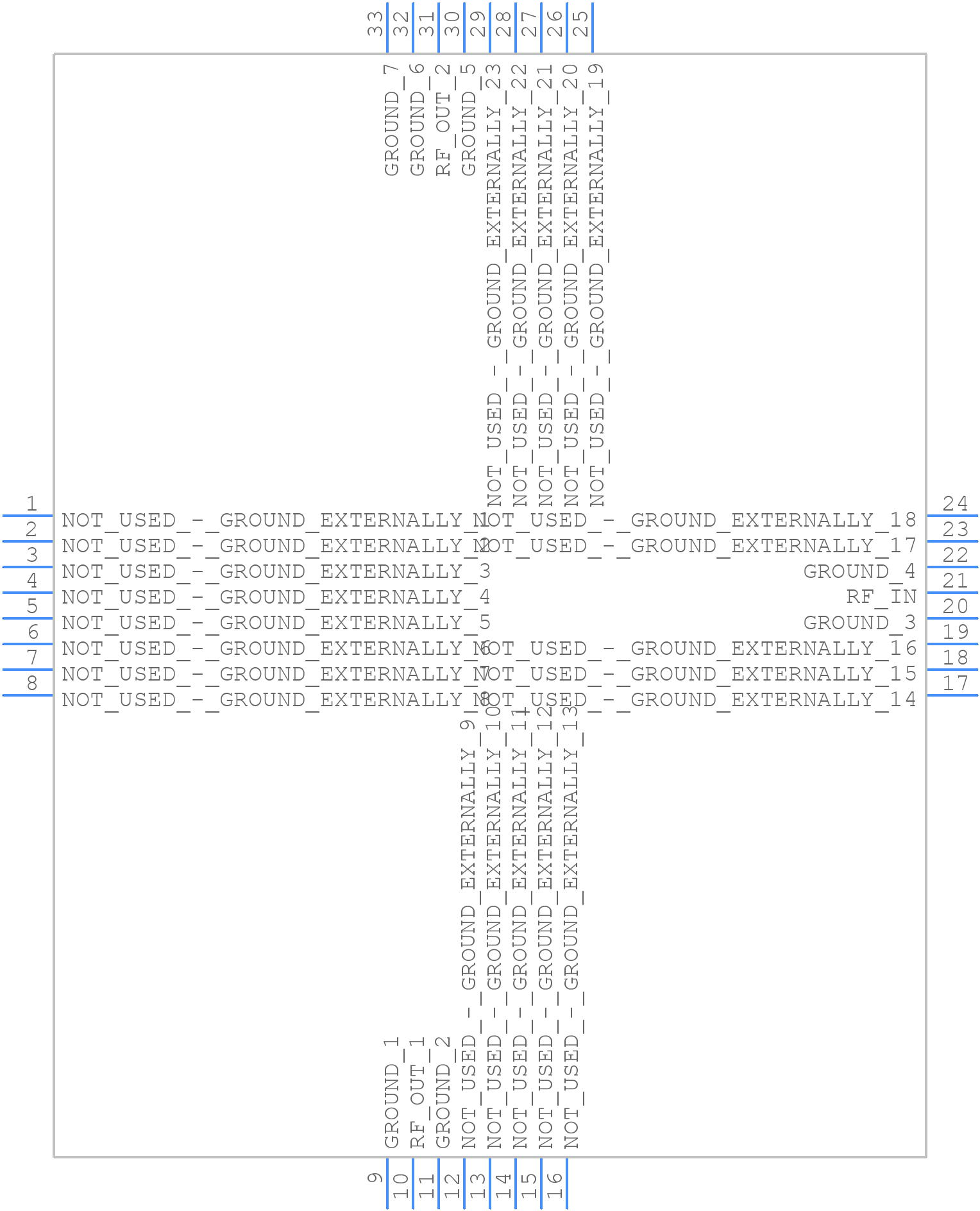

Symbol
EP2RCW+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
EP2RCW+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - DG1677-2
click to zoom
3D Models
EP2RCW+ - Mini-Circuits - 3D model - Quad Flat No-Lead - DG1677-2
click to zoom

EP2RCW+ Details

  • Manufacturer Part Number:

    EP2RCW+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    27.78 dBm

  • Insertion Loss-Max:

    6.1 dB

  • Isolation-Min:

    13 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Operating Frequency-Max:

    8000 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC32(UNSPEC)

  • RF/Microwave Device Type:

    SPLITTER AND COMBINER

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • VSWR-Max:

    1.8

EP2RCW+ Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the EP2RCW+ is -40°C to +85°C.
  • Yes, the EP2RCW+ is designed to operate in humid environments, but it's recommended to follow proper sealing and conformal coating procedures to ensure reliability.
  • Mini-Circuits recommends using a high-thermal-conductivity PCB material, such as FR4 or Rogers 4350, to ensure proper heat dissipation.
  • Yes, the EP2RCW+ is designed to withstand vibrations up to 10g, but it's recommended to follow proper mounting and securing procedures to ensure reliability.
  • Mini-Circuits recommends a soldering temperature profile of 250°C for 10-15 seconds, with a peak temperature of 260°C for 5 seconds.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EP2RCW+ Overview

Use the download button to access the EP2RCW+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EP2RC, or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
