EP3-19+ - Mini-Circuits

Description: Signal Conditioning 3 Ways MMIC Power Splitter, 15000 - 25000 MHz, 50 Ohm

Download EP3-19+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

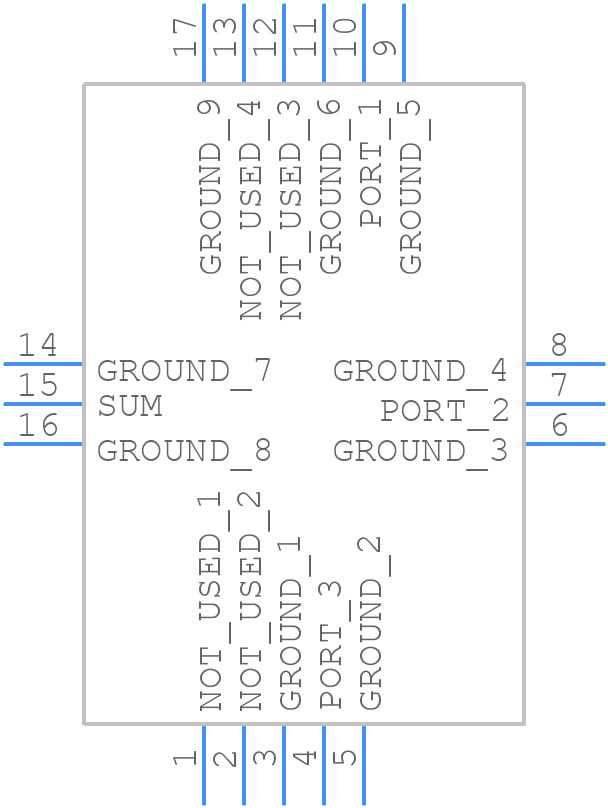

EP3-19+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
EP3-19+ - Mini-Circuits PCB footprint - Other - Other - JV2579
click to zoom
3D Models
EP3-19+ - Mini-Circuits - 3D model - Other - JV2579
click to zoom

EP3-19+ Details

  • Manufacturer Part Number:

    EP3-19+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    26.99 dBm

  • Insertion Loss-Max:

    2.1 dB

  • Isolation-Min:

    12 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    25000 MHz

  • Operating Frequency-Min:

    15000 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • RF/Microwave Device Type:

    SPLITTER AND COMBINER

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • VSWR-Max:

    1.2
