EP5388QI - Enpirion

Description: 800mA PowerSoC Synchronous Buck Regulator With Integrated Inductor

Download EP5388QI Model
Schematic
symbols

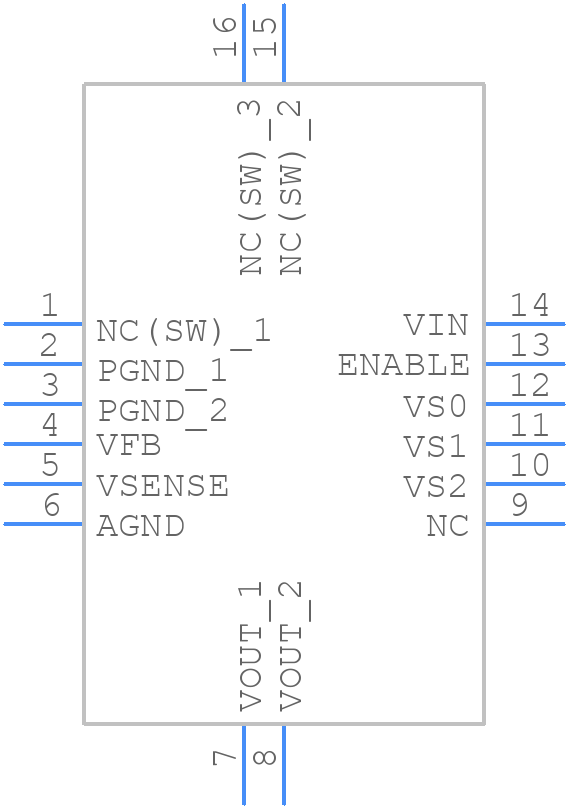

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
EP5388QI - Enpirion PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-pin QFN
click to zoom
3D Models
EP5388QI - Enpirion  - 3D model - Quad Flat No-Lead - 16-pin QFN
click to zoom

EP5388QI Details

  • Manufacturer Part Number:

    EP5388QI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    QFN

  • Package Description:

    3 X 3 MM, 1.10 MM HEIGHT, HALOGEN FREE AND ROHS COMPLIANT, QFN-16

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Intel Enpirion Power Solutions

  • Additional Feature:

    ADJUSTABLE OUTPUT MODE FROM 0.603 TO 5 VOLT

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.4 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-XQCC-N16

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Seated Height-Max:

    1.15 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    4000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

EP5388QI Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the switching components close to the IC and use a thermal relief pattern under the IC.
  • Use a low-ESR output capacitor, such as a ceramic or polymer capacitor, and place it close to the output pins. Also, ensure the PCB layout is optimized for low inductance.
  • The maximum input voltage is 6.5V, but it's recommended to keep it below 6V to ensure reliable operation and minimize power dissipation.
  • Use a heat sink with a thermal interface material, and ensure good airflow around the device. The maximum junction temperature is 125°C, so monitor the temperature and adjust the cooling system accordingly.
  • A 10uF to 22uF X5R or X7R ceramic capacitor is recommended, placed close to the input pins. This helps to filter the input voltage and reduce noise.
