Part Image

EP53A7HQI - Intel

Description: Switching Voltage Regulators 1000mA Syn Buck Reg Int Induc, Hi Vid Rg

Download EP53A7HQI Model

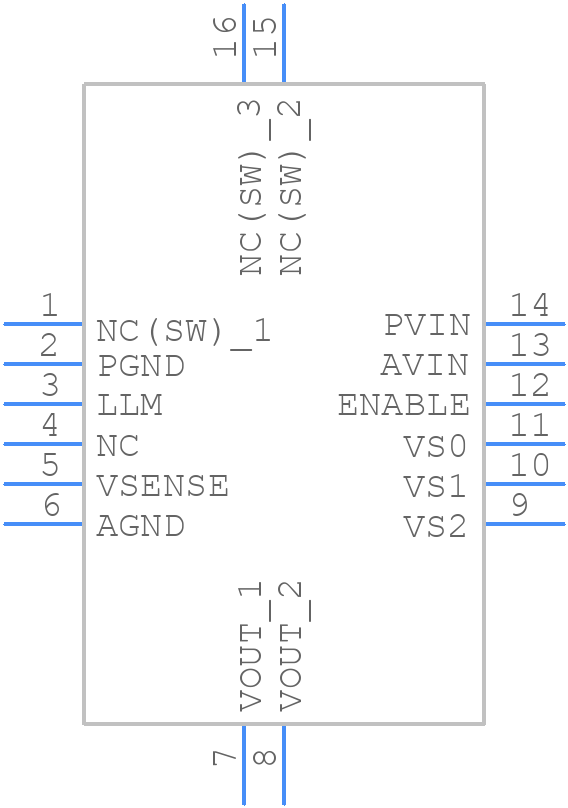

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
EP53A7HQI - Intel PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - EP53A7xQI
click to zoom
3D Models
EP53A7HQI - Intel  - 3D model - Quad Flat No-Lead - EP53A7xQI
click to zoom

EP53A7HQI Details

  • Manufacturer Part Number:

    EP53A7HQI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    0

  • Additional Feature:

    ADJUSTABLE OUTPUT MODE FROM 1.8 TO 3.3V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.4 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Seated Height-Max:

    1.15 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    5000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

EP53A7HQI Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the EP53A7HQI is -40°C to 85°C.
  • To ensure reliable operation in high-vibration environments, it is recommended to follow Intel's guidelines for mechanical design and assembly, and to use appropriate mounting and fastening methods to secure the module.
  • The EP53A7HQI requires a specific power sequencing order to ensure proper operation. The recommended power-up sequence is: 1) VCCP, 2) VCC, and 3) VTT. The power-down sequence should be reversed.
  • To troubleshoot issues with the EP53A7HQI's PCIe interface, check the PCIe link speed and width, ensure proper signal integrity, and verify that the PCIe device is properly enumerated and configured.
  • Intel provides guidelines for PCB layout and routing in the EP53A7HQI datasheet and application notes. Key recommendations include using a 4-layer PCB, following Intel's routing guidelines, and minimizing signal lengths and vias.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EP53A7HQI Overview

Use the download button to access the EP53A7HQI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EP53A, or try a keyword search, such as Switching Regulator or Controllers
