The recommended PCB layout for optimal performance can be found in the Enpirion Power Solutions application note AN-114, which provides guidelines for PCB design, component placement, and thermal management.
The selection of input capacitors depends on the input voltage, current, and ripple requirements. Enpirion recommends using low-ESR capacitors with a minimum capacitance of 10uF and a voltage rating of 2x the maximum input voltage. Refer to the Enpirion application note AN-115 for more details.
The EP53A8LQI has an operating temperature range of -40°C to +125°C, but the maximum junction temperature (TJ) should not exceed 150°C. Refer to the datasheet for thermal management guidelines to ensure reliable operation.
Enpirion provides a troubleshooting guide in their application note AN-116, which covers common issues, diagnostic techniques, and solutions. Additionally, the Enpirion support team can be contacted for further assistance.
Yes, the output capacitors should be selected based on the output voltage, current, and ripple requirements. Enpirion recommends using low-ESR capacitors with a minimum capacitance of 10uF and a voltage rating of 1.5x the maximum output voltage. Refer to the Enpirion application note AN-115 for more details.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EP53A8LQI Overview

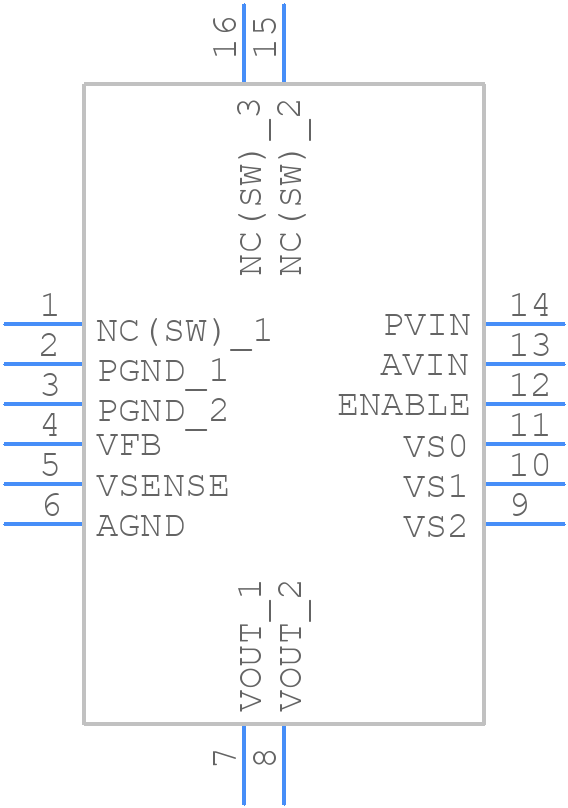

Use the download button to access the EP53A8LQI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EP53A,
or try a keyword search, such as Switching Regulator or Controllers
