EPC2025ENGR - Efficient Power Conversion

Description: Trans Gan 300V 4A Bumped Die, Maximum RDS(ON) 150 mΩ, Die Size: 1.95 mm x 1.95 mm

Download EPC2025ENGR Model

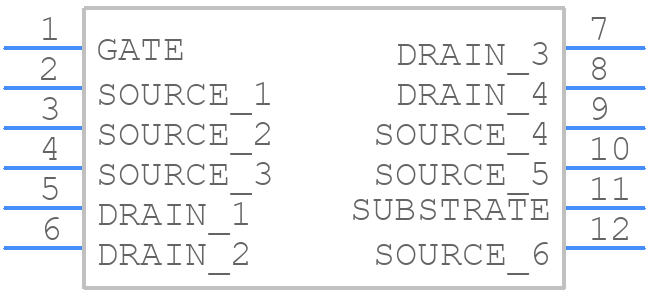

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
EPC2025ENGR - Efficient Power Conversion PCB footprint - Other - Other - EPC2025ENGR-2
click to zoom
3D Models
EPC2025ENGR - Efficient Power Conversion  - 3D model - Other - EPC2025ENGR-2
click to zoom

EPC2025ENGR Details

  • Manufacturer Part Number:

    EPC2025ENGR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    1.95 X 1.95 MM, HALOGEN FREE AND ROHS COMPLIANT, DIE-12

  • ECCN Code:

    EAR99

  • Manufacturer:

    Efficient Power Conversion

  • Configuration:

    SINGLE

  • DS Breakdown Voltage-Min:

    300 V

  • Drain Current-Max (ID):

    4 A

  • Drain-source On Resistance-Max:

    0.15 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    S-XXUC-X12

  • Number of Elements:

    1

  • Number of Terminals:

    12

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    SQUARE

  • Package Style:

    UNCASED CHIP

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    20 A

  • Surface Mount:

    YES

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UNSPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    GALLIUM NITRIDE

EPC2025ENGR Frequently Asked Questions (FAQs)

  • EPC provides a recommended PCB layout guide for the EPC2025ENGR, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance. Contact EPC support for more information.
  • To ensure reliable operation at high frequencies, follow EPC's guidelines for layout, decoupling, and termination. Additionally, consider using a low-loss PCB material, such as Rogers 4350B, and ensure that the PCB is properly soldered and assembled.
  • The EPC2025ENGR is designed to operate within the specified voltage range. Exceeding the maximum voltage rating can lead to device failure. It is recommended to follow the voltage derating guidelines provided in the datasheet to ensure reliable operation.
  • EPC provides a troubleshooting guide for the EPC2025ENGR, which includes steps to identify and resolve common issues such as over-temperature, over-current, and oscillation. Contact EPC support for more information.
  • The recommended gate drive voltage and current for the EPC2025ENGR depend on the specific application and operating conditions. EPC provides guidelines for gate drive design in the datasheet and application notes. Contact EPC support for more information.
