EPC provides a recommended PCB layout guide for the EPC2050, which includes guidelines for component placement, routing, and thermal management. It's essential to follow this guide to ensure optimal performance, low EMI, and high reliability.
The EPC2050 requires a high-frequency, low-impedance gate driver to ensure proper switching. EPC recommends using a gate driver with a peak current capability of at least 1 A and a propagation delay of less than 1 ns. The driver should also be able to handle the high dv/dt of the EPC2050.
The EPC2050 has a maximum operating temperature of 150°C, but it's recommended to keep the junction temperature below 125°C for optimal reliability and performance. Proper thermal management, including heat sinking and airflow, is essential to maintain a safe operating temperature.
The EPC2050 requires a stable bias voltage of 5 V ± 10% to ensure proper operation. It's essential to use a low-noise, high-PSRR bias supply and to decouple the bias pin with a high-quality capacitor to minimize noise and ripple.
The recommended dead time for the EPC2050 is 10-20 ns, depending on the specific application and switching frequency. A longer dead time can help reduce shoot-through currents, but may also increase switching losses.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EPC2050 Overview

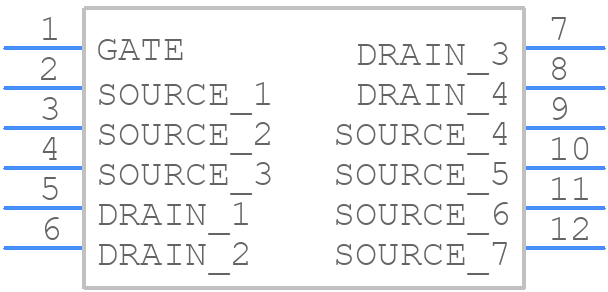

Use the download button to access the EPC2050 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EPC20,
or try a keyword search, such as Power Field-Effect Transistors
