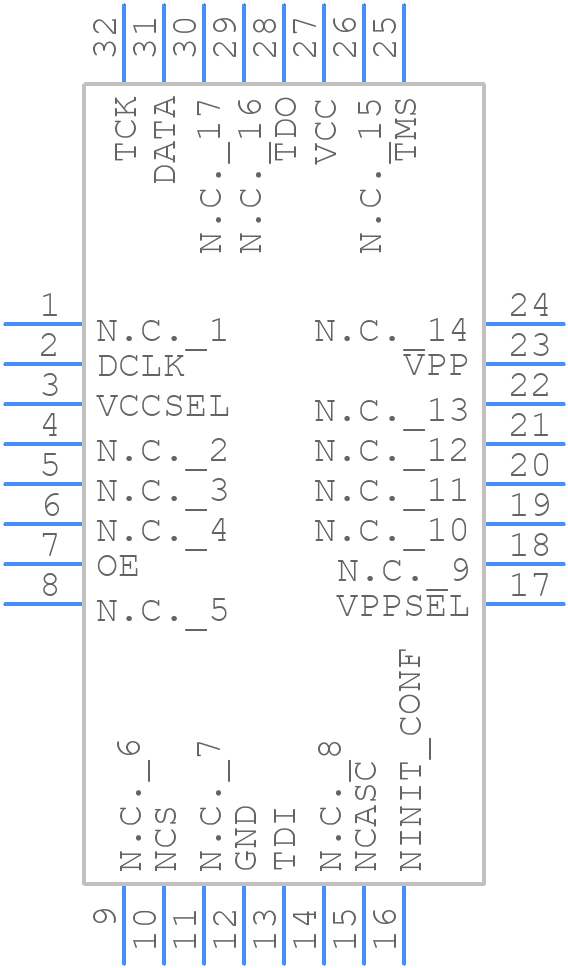

EPC2TI32N - Intel

EPC2TI32N Details

• Manufacturer Part Number:

  EPC2TI32N

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  TQFP-32

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.61

• Manufacturer:

  Intel Corporation

• YTEOL:

  0

• Additional Feature:

  IT ALSO REQUIRES 5V NOMINAL SUPPLY

• JESD-30 Code:

  S-PQFP-G32

• JESD-609 Code:

  e3

• Length:

  7 mm

• Memory Density:

  1695680 bit

• Memory IC Type:

  CONFIGURATION MEMORY

• Memory Width:

  1

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  32

• Number of Words:

  1695680 words

• Number of Words Code:

  1695680

• Operating Mode:

  SYNCHRONOUS

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  1695680X1

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TQFP

• Package Equivalence Code:

  TQFP32,.35SQ,32

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, THIN PROFILE

• Parallel/Serial:

  SERIAL

• Programming Voltage:

  3.3 V

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.2 mm

• Standby Current-Max:

  0.0001 A

• Supply Current-Max:

  0.05 mA

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  3 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  QUAD

• Width:

  7 mm
