EPC3472G-LF - PCA Electronics, Inc.

Description: 25W Flyback Isolated Inductors

Download EPC3472G-LF Model

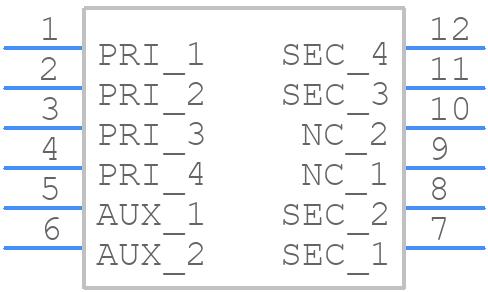

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

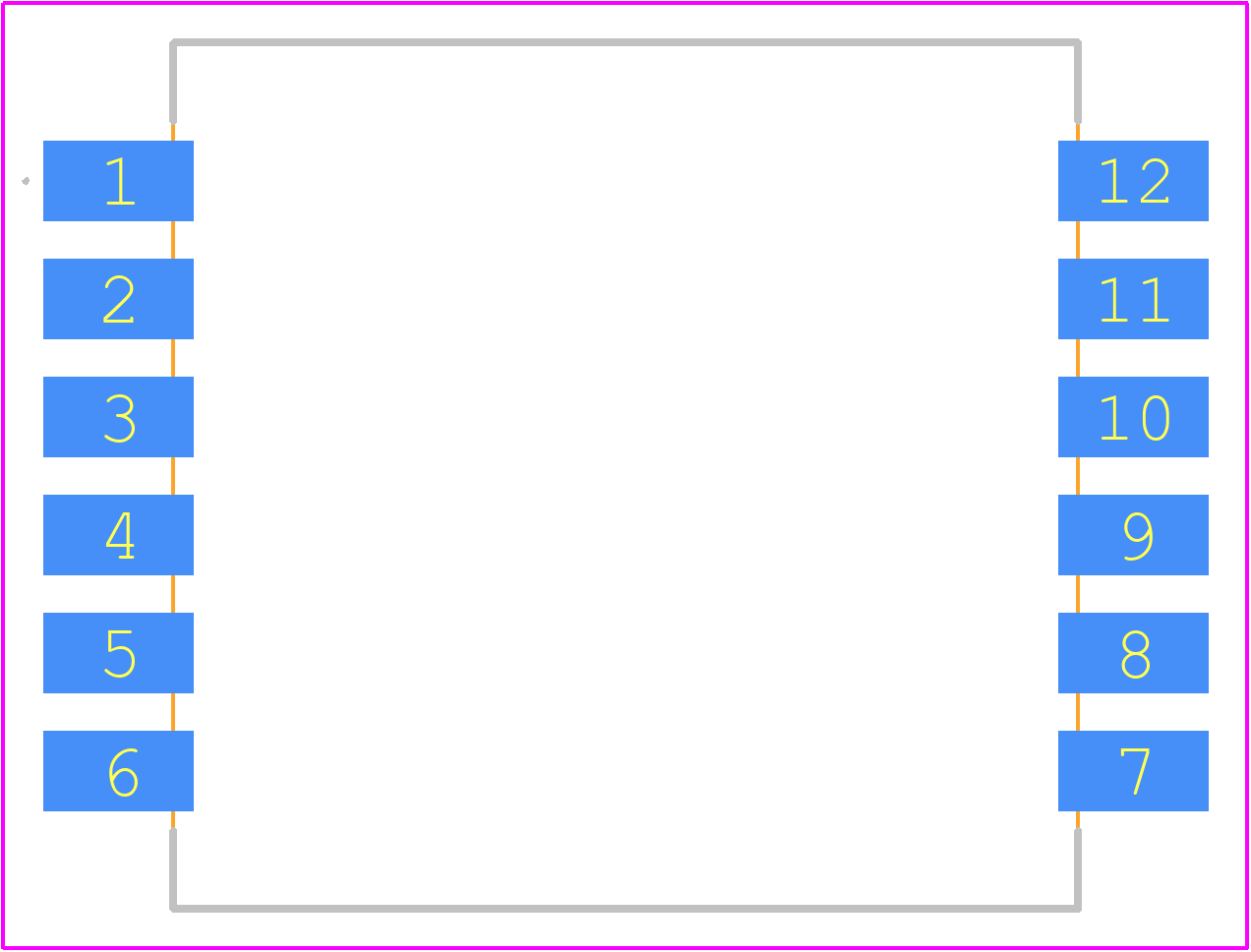

EPC3472G-LF - PCA Electronics, Inc. PCB footprint - Other - Other - EPC3472G-LF-1
click to zoom
3D Models
EPC3472G-LF - PCA Electronics, Inc.  - 3D model - Other - EPC3472G-LF-1
click to zoom

EPC3472G-LF Details

  • Manufacturer Part Number:

    EPC3472G-LF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    25W FLYBACK ISOLATED INDUCTOR

  • Country Of Origin:

    Mainland China, Philippines

  • ECCN Code:

    EAR99

  • Manufacturer:

    PCA Electronics Inc

  • YTEOL:

    7

  • Additional Feature:

    HEIGHT DIM INCLUDE TERMINAL ALSO

  • Height:

    11.51 mm

  • Input Voltage-Max:

    57 V

  • Input Voltage-Min:

    9 V

  • JESD-609 Code:

    e3/e2

  • Length:

    23.01 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    2

  • Operating Frequency-Max:

    250 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    5 V

  • Packing Method:

    TR

  • Power Rating:

    25 W

  • Primary Inductance:

    9 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN/TIN SILVER

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    22 mm

EPC3472G-LF Frequently Asked Questions (FAQs)

  • For optimal performance, it is recommended to follow the PCB layout guidelines provided in the application note. Ensure a solid ground plane, use thermal vias, and keep the component away from heat sources. A thermal pad on the bottom of the package helps with heat dissipation.
  • To ensure proper biasing, follow the recommended biasing circuit in the datasheet. Use a voltage regulator to maintain a stable voltage supply, and ensure the input and output impedances are matched to minimize reflections and maximize gain.
  • The recommended input and output matching networks can be found in the application note. These networks are designed to optimize the device's performance and minimize reflections. Use a network analyzer to fine-tune the matching networks for optimal results.
  • Handle the device with ESD-protective equipment and follow proper ESD handling procedures. Use an ESD wrist strap or mat, and ensure the workspace is ESD-protected. During assembly, use a conductive foam or tray to prevent damage.
  • The EPC3472G-LF has undergone rigorous reliability and qualification tests, including temperature cycling, humidity testing, and electrical overstress testing. The device meets the industry standards for reliability and is qualified for use in harsh environments.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EPC3472G-LF Overview

Use the download button to access the EPC3472G-LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EPC34, or try a keyword search, such as SMPS Transformers

Parts related to EPC3472G-LF

Showing 0 results

EPC3472G-LF Alternates

Showing results

Image Part Number Model
Part Image EPC3472G PCA Electronics Inc

SMPS Transformer, 25W
