- Part Number EPC3577G-LF
- Manufacturer PCA
- Pin Count 12
- Part Category Transformer
- Package Category Small Outline Packages

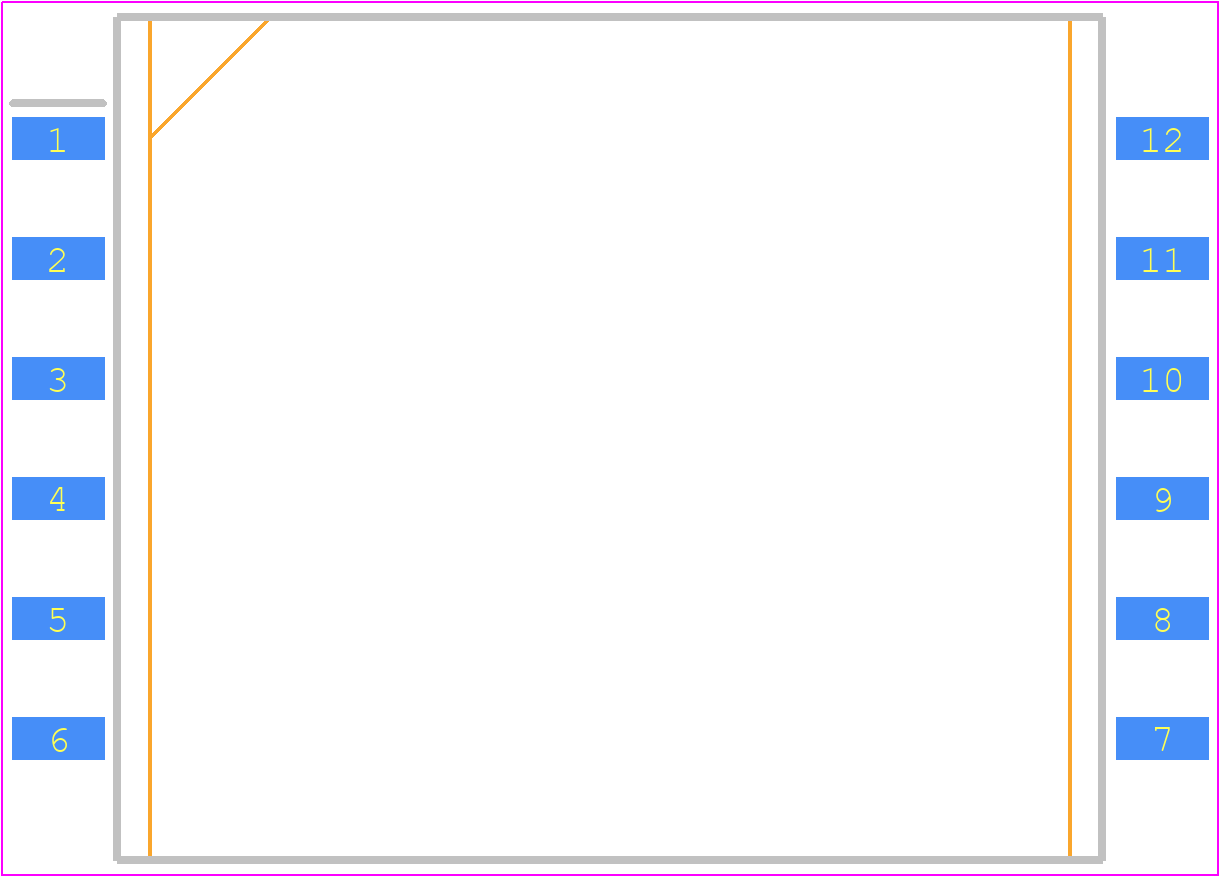

- Footprint Name Small Outline Packages - EPC3577G-LF
- Released Date Jul 19, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
EPC3577G-LF Details
-
Manufacturer Part Number:
EPC3577G-LF
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Mainland China, Philippines
-
ECCN Code:
EAR99
-
Manufacturer:
PCA Electronics Inc
-
YTEOL:
7
-
Additional Feature:
HEIGHT DIMENSION INCLUDE TERMINAL ALSO, TURNS RATIO: 1.5:1
-
Height:
11.5 mm
-
Input Voltage-Max:
57 V
-
Input Voltage-Min:
33 V
EPC3577G-LF Frequently Asked Questions (FAQs)
-
The recommended PCB layout involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths. For thermal management, ensure good airflow, use a heat sink if necessary, and follow the recommended thermal pad layout.
-
To ensure EMC and reduce EMI, use a shielded enclosure, keep sensitive components away from the EPC3577G-LF, use a common-mode choke, and follow proper PCB layout and grounding techniques.
-
The recommended input capacitors are low-ESR ceramic capacitors (e.g., X5R or X7R) with a value of 10-22uF. For output capacitors, use low-ESR ceramic or electrolytic capacitors with a value of 10-47uF.
-
To troubleshoot, check for proper PCB layout, thermal management, and component selection. Verify the input voltage, output load, and component values. Use an oscilloscope to check for oscillations and ensure the output voltage is within the specified range.
-
The EPC3577G-LF has a typical lifespan of 10-15 years, depending on operating conditions. Ensure proper thermal management, follow the recommended operating conditions, and use a reliable manufacturing process to maximize reliability.
Trust Checks
Community Provided
System Verified
Community Approved
EPC3577G-LF Overview

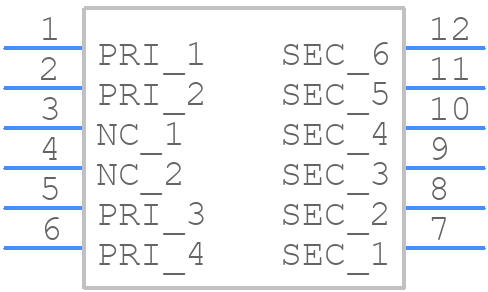

Use the download button to access the EPC3577G-LF schematic symbol, PCB footprint, and 3D model.
