EPG.1B.305.HLN - LEMO

Description: Lemo 1B Panel Mount Connector, 5 Contacts, Socket

Download EPG.1B.305.HLN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EPG.1B.305.HLN - LEMO - PCB symbol
click to zoom
PCB Footprints

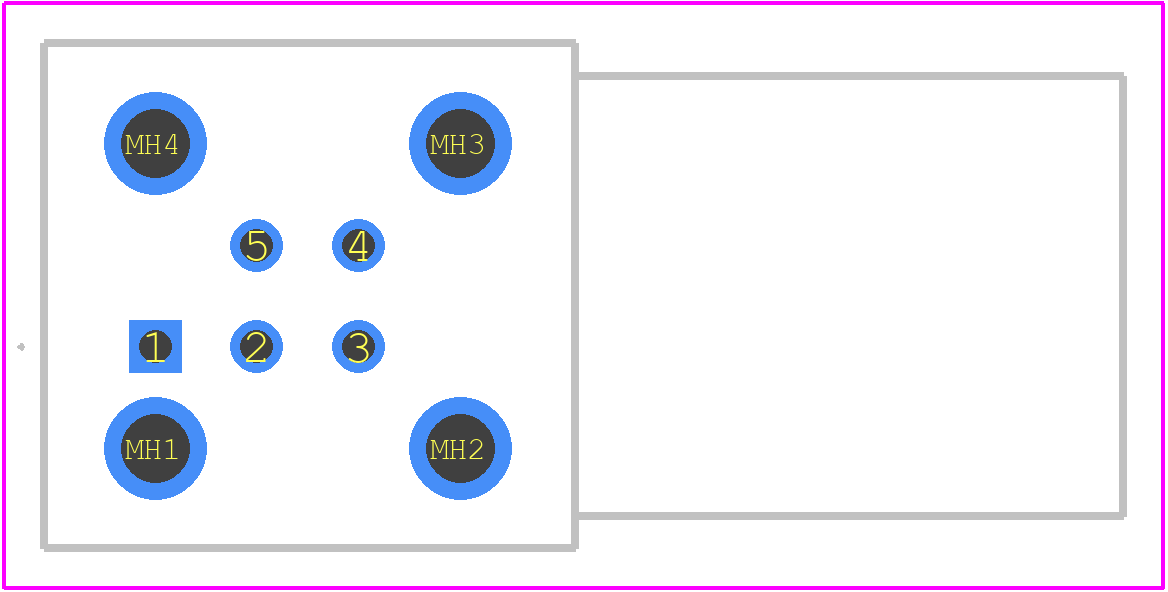

EPG.1B.305.HLN - LEMO PCB footprint - Other - Other - EPG.1B.305.HLN-2
click to zoom
3D Models
EPG.1B.305.HLN - LEMO - 3D model - Other - EPG.1B.305.HLN-2
click to zoom

EPG.1B.305.HLN Details

  • Manufacturer Part Number:

    EPG.1B.305.HLN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    LEMO connectors

  • YTEOL:

    8

  • Additional Feature:

    POLARIZED, SHIELDED

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Environmental Characteristics:

    CORROSION/MOISTURE RESISTANT

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYPHENYLENE SULFIDE

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    5

EPG.1B.305.HLN Frequently Asked Questions (FAQs)

  • The recommended torque for the EPG.1B.305.HLN connector is 0.4 Nm (3.5 lbf.in) for the nut and 0.2 Nm (1.8 lbf.in) for the screw.
  • Yes, the EPG.1B.305.HLN connector is designed to withstand high-vibration environments and is commonly used in aerospace, defense, and industrial applications where vibration is a concern.
  • Yes, the EPG.1B.305.HLN connector is designed to operate in harsh environments, including temperatures ranging from -55°C to 200°C and humidities up to 95% RH. However, it's recommended to consult the datasheet and LEMO's application notes for specific guidance on environmental considerations.
  • The EPG.1B.305.HLN connector has an IP67 rating, which means it is protected against dust ingress and can withstand immersion in water up to 1 meter for 30 minutes.
  • Yes, the EPG.1B.305.HLN connector is designed for high-frequency applications and has a bandwidth of up to 3 GHz. However, it's recommended to consult the datasheet and LEMO's application notes for specific guidance on high-frequency performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EPG.1B.305.HLN Overview

Use the download button to access the EPG.1B.305.HLN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EPG.1, or try a keyword search, such as Other Circular Connectors

About LEMO

LEMO is a global manufacturer of fiber optic connectors used in medical, industrial, telecommunications, defense, test and measurement, and audio/visual applications. LEMO is known for their push-pull self latching connectors. LEMO is headquartered in Switzerland.
