EPG.1B.306.HLN - LEMO

Description: 6 way size 1B PCB mount socket,7A Lemo 1B Series, 6 Pole Right Angle Through Hole Connector Socket, Shell Size 1, with Female Contacts

Download EPG.1B.306.HLN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EPG.1B.306.HLN - LEMO - PCB symbol
click to zoom
PCB Footprints

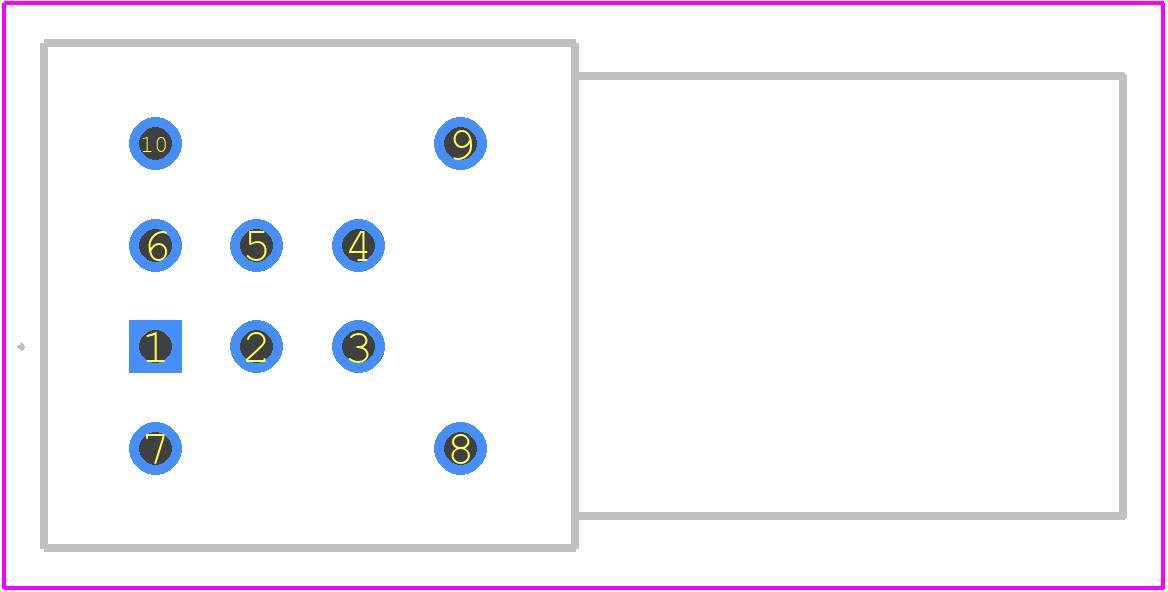

EPG.1B.306.HLN - LEMO PCB footprint - Other - Other - EPG.1B.306.HLN-8
click to zoom
3D Models
EPG.1B.306.HLN - LEMO - 3D model - Other - EPG.1B.306.HLN-8
click to zoom

EPG.1B.306.HLN Details

  • Manufacturer Part Number:

    EPG.1B.306.HLN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    LEMO connectors

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    RF CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYETHERETHERKETONE

  • MIL Conformance:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Panel Mount:

    NO

  • Termination Type:

    SOLDER

EPG.1B.306.HLN Frequently Asked Questions (FAQs)

  • The recommended torque for the EPG.1B.306.HLN connector is 0.4 Nm to 0.6 Nm (3.5 in-lbs to 5.3 in-lbs).
  • Yes, the EPG.1B.306.HLN connector is designed to withstand high-vibration environments and is suitable for applications where shock and vibration are a concern.
  • Yes, the EPG.1B.306.HLN connector is designed to operate in harsh environments, including extreme temperatures, humidity, and exposure to chemicals.
  • The EPG.1B.306.HLN connector has an IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.
  • Yes, the EPG.1B.306.HLN connector is designed for high-speed data transmission and can support data rates up to 10 Gbps.
