EPG.1B.310.HLN - LEMO

Description: Circular Connector, 1B Series, Panel Mount Receptacle, 10 Contacts, Solder Socket, Push-Pull

Download EPG.1B.310.HLN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EPG.1B.310.HLN - LEMO - PCB symbol
click to zoom
PCB Footprints

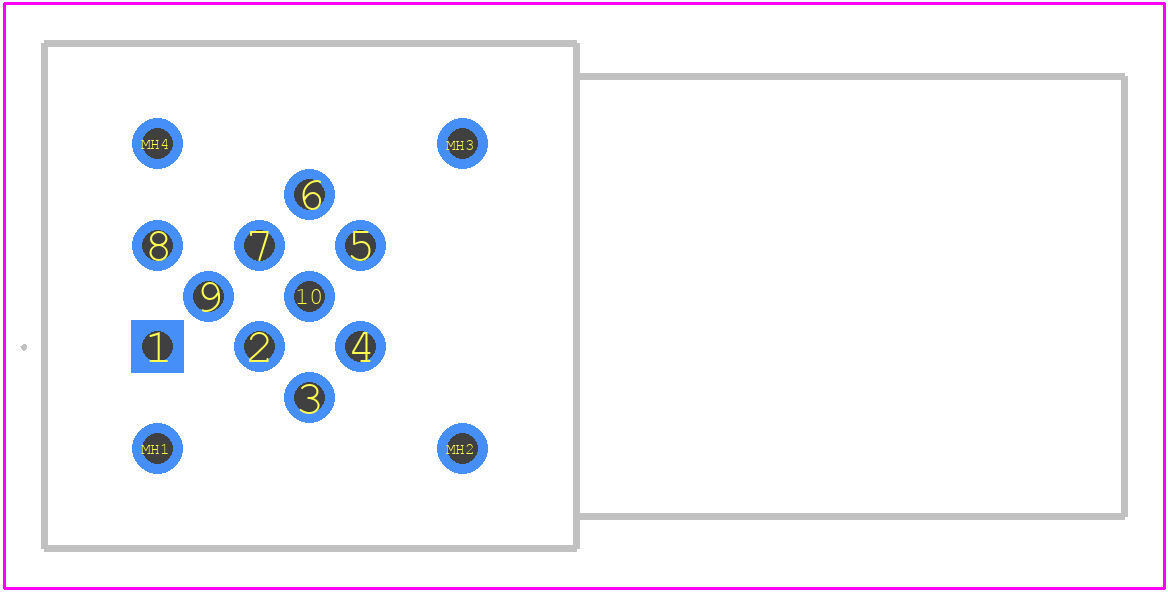

EPG.1B.310.HLN - LEMO PCB footprint - Other - Other - EPG.1B.310.HLN-1
click to zoom
3D Models
EPG.1B.310.HLN - LEMO - 3D model - Other - EPG.1B.310.HLN-1
click to zoom

EPG.1B.310.HLN Details

  • Manufacturer Part Number:

    EPG.1B.310.HLN

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    LEMO connectors

  • YTEOL:

    8.87

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Environmental Characteristics:

    CORROSION/MOISTURE RESISTANT

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYPHENYLENE SULFIDE

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Size:

    1B

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

EPG.1B.310.HLN Frequently Asked Questions (FAQs)

  • The recommended torque for the EPG.1B.310.HLN connector is 0.4 Nm (3.5 lbf.in) for the nut and 0.2 Nm (1.8 lbf.in) for the screw.
  • Yes, the EPG.1B.310.HLN connector is designed to withstand high-vibration applications, with a vibration resistance of 10-2000 Hz, 10g acceleration.
  • Yes, the EPG.1B.310.HLN connector is designed to operate in harsh environments, with an operating temperature range of -55°C to 150°C and resistance to salt spray, humidity, and other environmental factors.
  • The EPG.1B.310.HLN connector has a mating cycle life of 500 cycles, making it suitable for applications that require frequent connections and disconnections.
  • Yes, the EPG.1B.310.HLN connector is part of the LEMO B series, which is compatible with other B series connectors, but not with other LEMO series connectors.
