Tamura recommends a 4-layer PCB with a solid ground plane and a separate power plane for the EPM0310SJ. The device should be placed near the center of the board, and the input and output pins should be routed away from each other to minimize noise coupling.
To ensure reliable operation over the full temperature range, it's essential to follow proper thermal design guidelines. This includes providing adequate heat sinking, using a thermally conductive PCB material, and avoiding thermal hotspots. Additionally, the device should be operated within the recommended voltage and current ratings.
The maximum allowable voltage drop across the input and output pins is 1V. Exceeding this voltage drop may result in reduced performance, increased power consumption, or even device damage.
Yes, the EPM0310SJ is designed to meet the requirements of high-reliability and safety-critical applications. However, it's essential to follow Tamura's recommended design guidelines, perform thorough testing and validation, and obtain any necessary certifications or approvals.
The typical lead time for the EPM0310SJ is 12-16 weeks, and the minimum order quantity (MOQ) is 1,000 pieces. However, these values may vary depending on the region, distributor, and other factors, so it's best to check with Tamura or an authorized distributor for the most up-to-date information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EPM0310SJ Overview

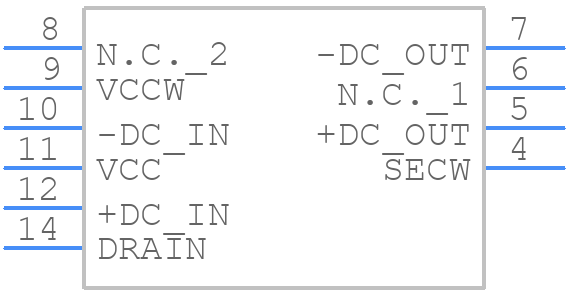

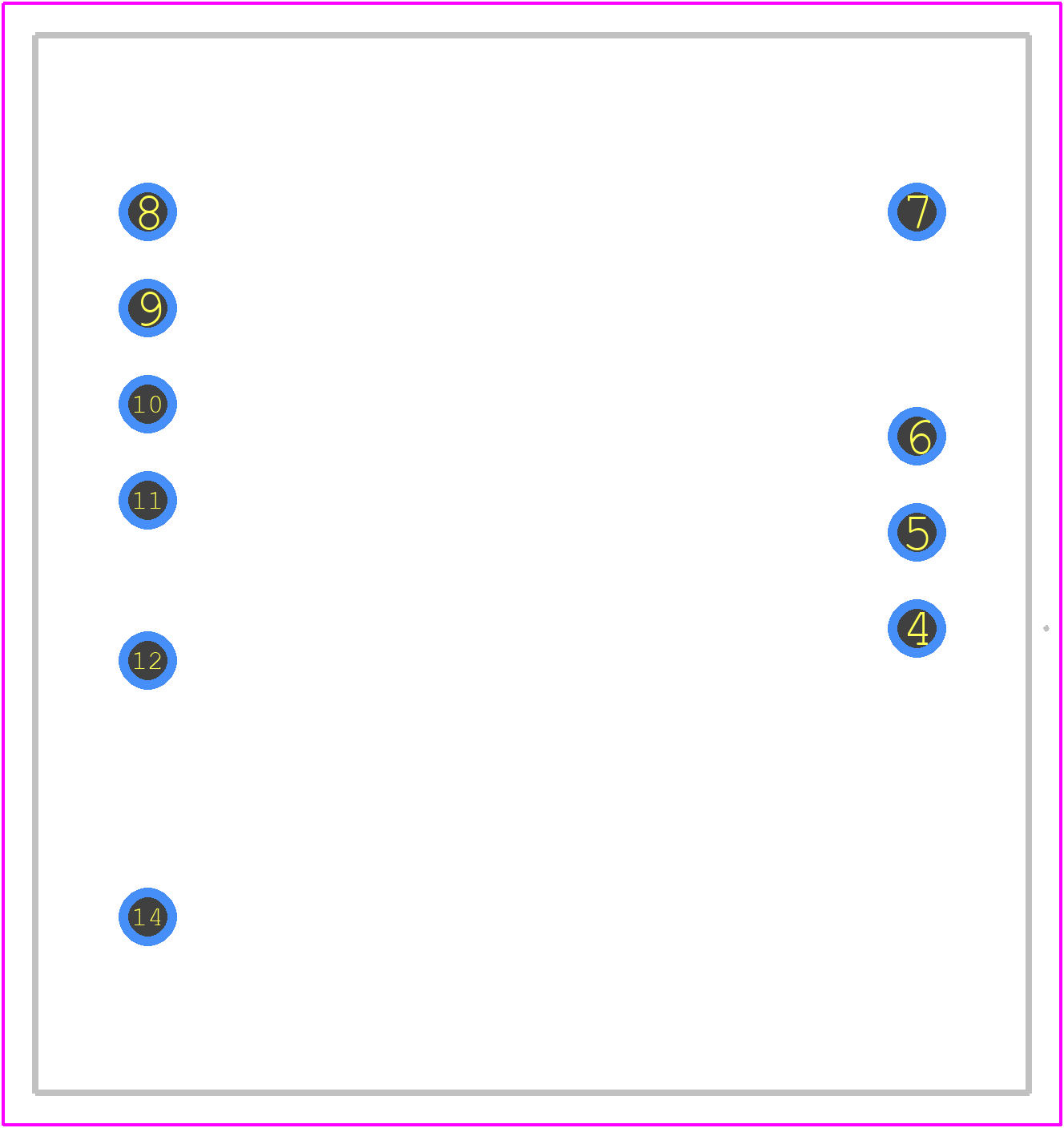

Use the download button to access the EPM0310SJ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EPM03,
or try a keyword search, such as Power Supply Modules
