Tamura recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a microstrip or stripline layout for the high-frequency signals. A minimum of 50 mil clearance around the component is also recommended.
Tamura recommends using a reflow soldering process with a peak temperature of 260°C (500°F) for 10-15 seconds. Hand soldering is not recommended due to the small size of the component.
The EPM0510SJ is rated for operation from -40°C to +125°C (-40°F to +257°F), but derating may be necessary for high-frequency applications or high-power dissipation.
Yes, the EPM0510SJ is designed to withstand high-vibration and high-shock environments, but additional mechanical support or potting may be necessary to ensure reliability.
Tamura recommends using a combination of visual inspection, signal integrity analysis, and thermal imaging to troubleshoot issues with the EPM0510SJ. Consult the datasheet and application notes for specific guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EPM0510SJ Overview

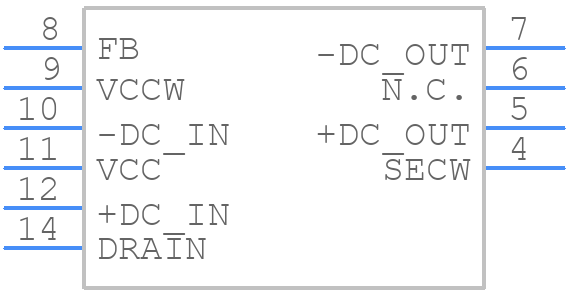

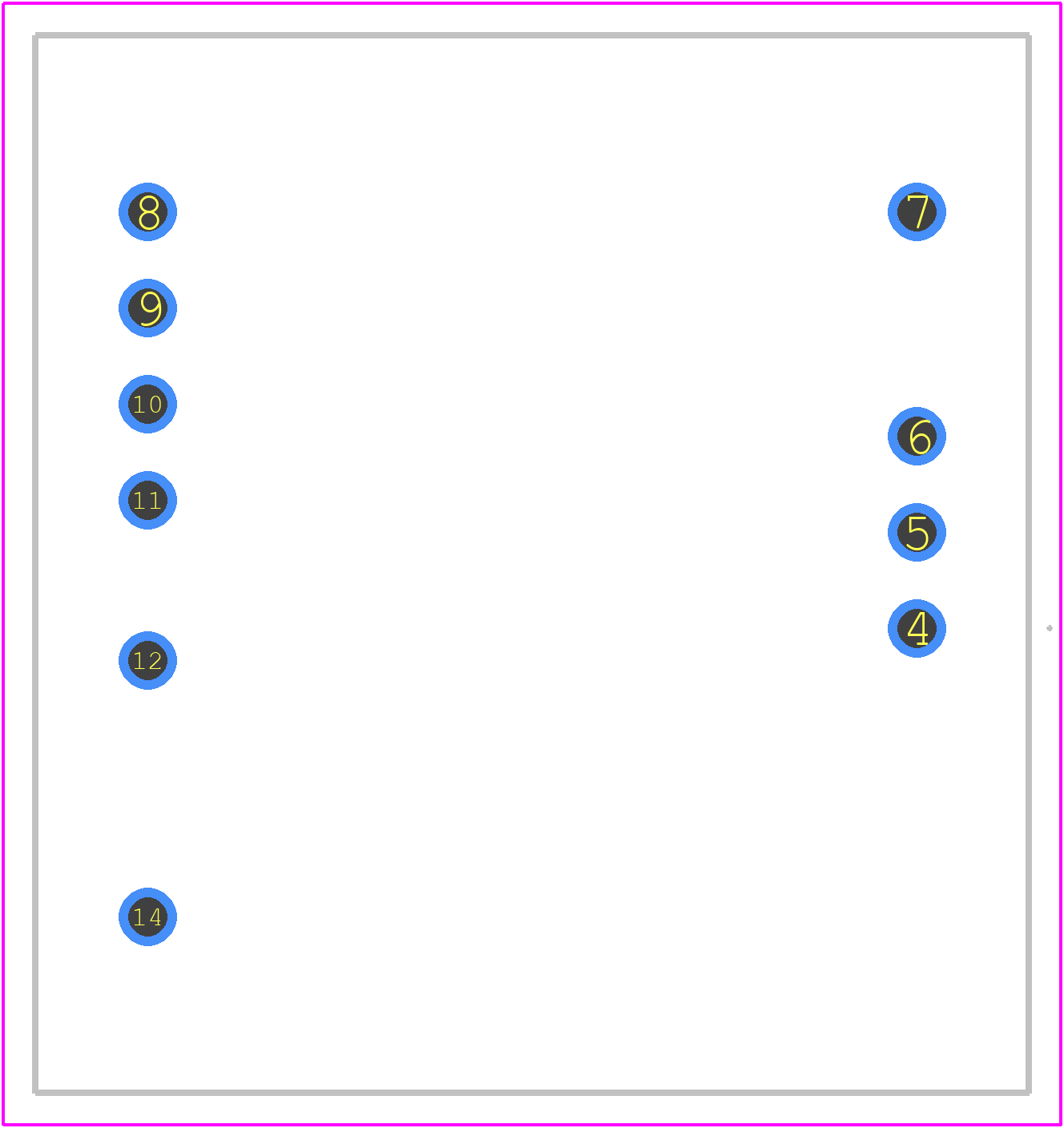

Use the download button to access the EPM0510SJ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EPM05,
or try a keyword search, such as Power Supply Modules
