EPQ-133+ - Mini-Circuits

Description: MMIC 90° Hybrid, 6000 - 14000 MHz, 50Ω

Download EPQ-133+ Model

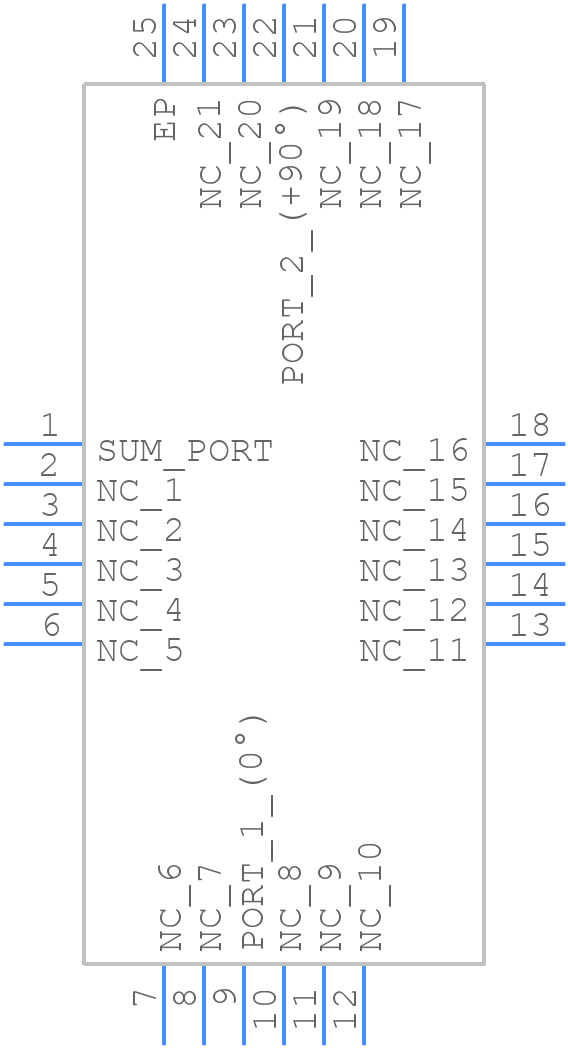

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
EPQ-133+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24 pin qfn
click to zoom
3D Models
EPQ-133+ - Mini-Circuits  - 3D model - Quad Flat No-Lead - 24 pin qfn
click to zoom

EPQ-133+ Details

  • Manufacturer Part Number:

    EPQ-133+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2017-08-04

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.74

  • Additional Feature:

    TR, 7 INCH: 1000

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    32 dBm

  • Insertion Loss-Max:

    2 dB

  • Isolation-Min:

    13 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    14000 MHz

  • Operating Frequency-Min:

    6000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -45 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • RF/Microwave Device Type:

    90 DEGREE HYBRID COUPLER

  • Surface Mount:

    YES

  • VSWR-Max:

    1.5

EPQ-133+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-014, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
  • The EPQ-133+ can generate significant heat, especially at high frequencies and power levels. It's crucial to provide adequate heat sinking, such as a thermal pad or heat sink, and ensure good airflow around the device. Additionally, operating the device within its recommended temperature range is essential to prevent thermal shutdown or damage.
  • While the datasheet specifies the maximum input power, it's essential to note that this value can vary depending on the frequency, impedance, and other factors. As a general rule, it's recommended to derate the input power by 1-2 dB to ensure reliable operation and prevent damage to the device.
  • The EPQ-133+ has a nominal impedance of 50 ohms, but it can be matched to other impedances using external components. Mini-Circuits provides a matching network design guide in their application note AN-60-015, which can help engineers design a matching network for their specific application.
  • While the datasheet specifies a typical noise figure, it's essential to note that this value can vary depending on the frequency, temperature, and other factors. In general, the noise figure of the EPQ-133+ is around 3-4 dB, but it's recommended to consult the datasheet or contact Mini-Circuits for more detailed information.
