EPTS-2-P-D-VT-02 - SAMTEC

Description: 4 Connector Receptacle, Female Blade Sockets Through Hole Black Blade Power

Download EPTS-2-P-D-VT-02 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

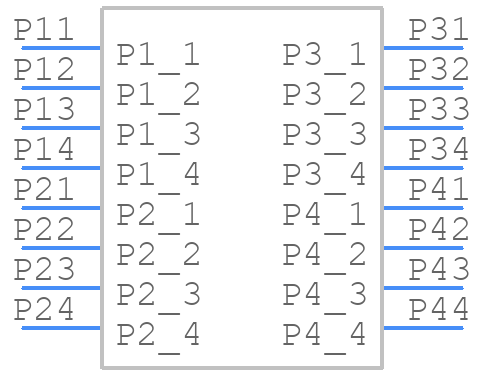

EPTS-2-P-D-VT-02 - SAMTEC - PCB symbol
click to zoom
PCB Footprints
EPTS-2-P-D-VT-02 - SAMTEC PCB footprint - Other - Other - EPTS-2-P-D-VT-02-4
click to zoom
3D Models
EPTS-2-P-D-VT-02 - SAMTEC - 3D model - Other - EPTS-2-P-D-VT-02-4
click to zoom

EPTS-2-P-D-VT-02 Details

  • Manufacturer Part Number:

    EPTS-2-P-D-VT-02

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    2 Weeks

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    7.3

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

EPTS-2-P-D-VT-02 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm) to ensure secure connection without damaging the terminals.
  • Yes, the EPTS-2-P-D-VT-02 is designed to withstand vibration and shock according to IEC 61373 Cat 2, making it suitable for use in high-vibration environments.
  • The operating temperature range for the EPTS-2-P-D-VT-02 is -40°C to 125°C, making it suitable for use in a wide range of applications.
  • Yes, the EPTS-2-P-D-VT-02 is compatible with lead-free soldering processes and meets the requirements of RoHS and WEEE directives.
  • The mating cycle life of the EPTS-2-P-D-VT-02 is 500 cycles, ensuring reliable connections over a long period of time.
