EPTT-2-P-11.5-D-RA - SAMTEC

Description: High Speed/Modular Connectors ExaMAX Terminal Power Module

Download EPTT-2-P-11.5-D-RA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EPTT-2-P-11.5-D-RA - SAMTEC - PCB symbol
click to zoom

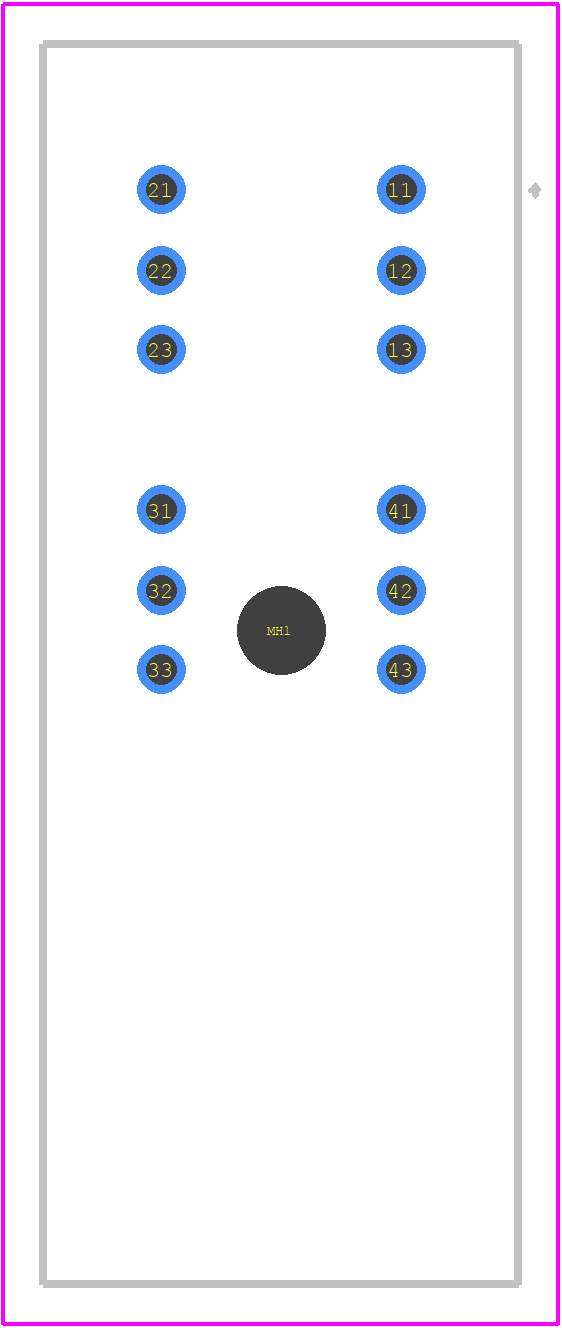

PCB Footprints
EPTT-2-P-11.5-D-RA - SAMTEC PCB footprint - Other - Other - EPTT-2-P-11.5-D-RA-1
click to zoom
3D Models
EPTT-2-P-11.5-D-RA - SAMTEC - 3D model - Other - EPTT-2-P-11.5-D-RA-1
click to zoom

EPTT-2-P-11.5-D-RA Details

  • Manufacturer Part Number:

    EPTT-2-P-11.5-D-RA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    4 Weeks, 2 Days

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

EPTT-2-P-11.5-D-RA Frequently Asked Questions (FAQs)

  • The recommended torque for securing the EPTT-2-P-11.5-D-RA connector is 0.5-1.5 Nm (4-12 in-lbs).
  • Yes, the EPTT-2-P-11.5-D-RA is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, automotive, and industrial control systems.
  • The EPTT-2-P-11.5-D-RA operates within a temperature range of -55°C to 125°C (-65°F to 257°F), making it suitable for a wide range of applications.
  • Yes, the EPTT-2-P-11.5-D-RA is compatible with lead-free soldering processes, making it suitable for RoHS-compliant applications.
  • The EPTT-2-P-11.5-D-RA has a mating cycle life of 500 cycles, ensuring reliable connections over an extended period.
