- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for EQY-10-63+
- Part Number EQY-10-63+
- Manufacturer Mini-Circuits
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - MC1631-1
- Released Date Sep 26, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
EQY-10-63+ Details
-
Manufacturer Part Number:
EQY-10-63+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Date Of Intro:
2019-02-04
-
Manufacturer:
Mini-Circuits
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Mounting Feature:
SURFACE MOUNT
-
Number of Terminals:
8
-
Operating Frequency-Max:
6000 MHz
EQY-10-63+ Frequently Asked Questions (FAQs)
-
A good PCB layout practice is to use a solid ground plane, keep the signal traces short and away from the edges, and use via stitching to connect the top and bottom ground planes. A 4-layer PCB with a dedicated ground plane is recommended.
-
The EQY-10-63+ has a 50 ohm input and output impedance. To impedance match, use a pi-network or a T-network with resistors and capacitors to match the impedance of your system to 50 ohms.
-
The maximum power handling of the EQY-10-63+ is +23 dBm (200 mW). Exceeding this power may cause damage to the device.
-
The EQY-10-63+ requires a positive voltage supply of +12V to +15V and a negative voltage supply of -12V to -15V. The recommended bias current is 100 mA.
-
The operating temperature range of the EQY-10-63+ is -40°C to +85°C. However, the device is typically tested and characterized at room temperature (25°C).
Trust Checks
Expert Contribution
System Verified
Community Approved
EQY-10-63+ Overview

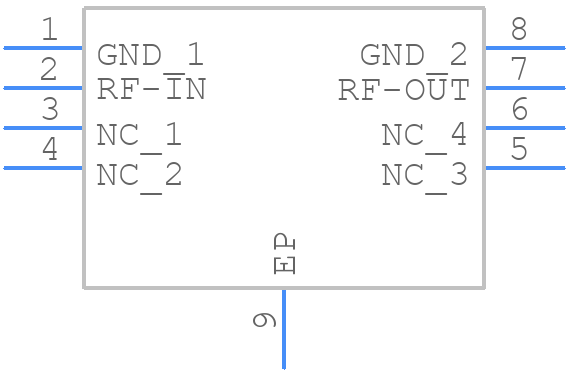

Use the download button to access the EQY-10-63+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EQY-1,
or try a keyword search, such as Other RF/Microwave Devices
About Mini-Circuits
Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
