EQY-15-24+ - Mini-Circuits

Description: 13GHz Center Frequency RF Filter (Radio Frequency) 14GHz Bandwidth 18.6dB 8-SMD, No Lead

Download EQY-15-24+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

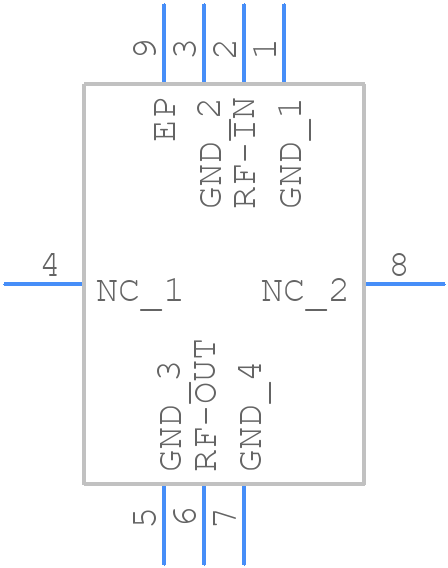

EQY-15-24+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
EQY-15-24+ - Mini-Circuits PCB footprint - Other - Other - JV3002_2026-1.1
click to zoom
3D Models
EQY-15-24+ - Mini-Circuits - 3D model - Other - JV3002_2026-1.1
click to zoom

EQY-15-24+ Details

  • Manufacturer Part Number:

    EQY-15-24+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Mini-Circuits

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    20000 MHz

  • Operating Frequency-Min:

    6000 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • RF/Microwave Device Type:

    GAIN EQUALIZER

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • VSWR-Max:

    1.25

EQY-15-24+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and a via-stitched ground connection between the top and bottom layers. Additionally, a low-impedance path to the ground plane is recommended for the device's ground pins.
  • The EQY-15-24+ requires a bias voltage of +15V and -24V, with a recommended bias current of 100mA. Ensure that the bias voltage is well-regulated and decoupled to prevent noise and ripple from affecting the device's performance.
  • The EQY-15-24+ can handle input powers up to +20dBm without damage. However, it's recommended to operate the device at input powers below +15dBm to ensure optimal performance and linearity.
  • Common issues can be troubleshooted by checking the PCB layout and grounding scheme, ensuring proper biasing and decoupling, and verifying that the input and output impedances are matched to the device's specifications. Additionally, Mini-Circuits provides application notes and technical support to help troubleshoot and resolve issues.
  • The EQY-15-24+ has a maximum operating temperature of +85°C. Ensure that the device is mounted on a heat sink or a thermally-conductive PCB material, and that there is adequate airflow to prevent overheating. Additionally, avoid exposing the device to extreme temperatures during storage or handling.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EQY-15-24+ Overview

Use the download button to access the EQY-15-24+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EQY-1, or try a keyword search, such as Other RF/Microwave Devices
