EQY-6-24+ Details
-
Manufacturer Part Number:
EQY-6-24+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Mounting Feature:
SURFACE MOUNT
-
Number of Terminals:
6
-
Operating Frequency-Max:
20000 MHz
EQY-6-24+ Frequently Asked Questions (FAQs)
-
A good PCB layout and grounding scheme is crucial for optimal performance. Mini-Circuits recommends a multi-layer PCB with a solid ground plane, and to keep the signal traces as short as possible. Also, it's recommended to use a common ground point for the amplifier and the power supply.
-
The EQY-6-24+ is designed to work with 50 ohm input and output impedance. However, if your application requires a different impedance, you can use impedance matching networks to transform the impedance. Mini-Circuits provides a impedance matching calculator on their website to help with this.
-
The maximum power handling of the EQY-6-24+ is 1W. Exceeding this power limit can cause damage to the device. It's recommended to use an attenuator or a limiter to prevent over-powering the amplifier.
-
The EQY-6-24+ is a self-biased amplifier, but it's recommended to use an external bias circuit to optimize the performance. Mini-Circuits provides a recommended bias circuit in the datasheet, which includes a voltage regulator and a resistor network.
-
The operating temperature range of the EQY-6-24+ is -40°C to +85°C. However, the amplifier's performance may degrade at extreme temperatures. It's recommended to operate the amplifier within a temperature range of 0°C to +60°C for optimal performance.
Trust Checks
Community Provided
System Verified
Community Approved
EQY-6-24+ Overview

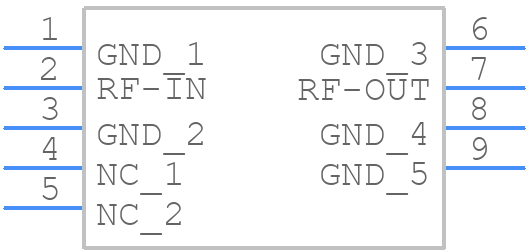

Use the download button to access the EQY-6-24+ schematic symbol, PCB footprint, and 3D model.
