- Part Number EQY-8-63+
- Manufacturer Mini-Circuits
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - MC1631-1_2023-1
- Released Date Oct 19, 2023
- Last Modified Date Oct 20, 2023 6:25 AM UTC
- Pinout / Pin List Click Here (Member Only)
EQY-8-63+ Details
-
Manufacturer Part Number:
EQY-8-63+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
JESD-609 Code:
e3
-
Mounting Feature:
SURFACE MOUNT
-
Number of Terminals:
8
EQY-8-63+ Frequently Asked Questions (FAQs)
-
A good grounding scheme is essential for optimal performance. It is recommended to use a solid ground plane and to connect the device's ground pins to it. The PCB layout should also be designed to minimize parasitic inductances and capacitances.
-
The EQY-8-63+ has a 50 ohm input and output impedance. To impedance match, use a pi-network or a T-network with resistors and capacitors to match the impedance of your system to 50 ohms.
-
The maximum power handling of the EQY-8-63+ is 1 watt. Exceeding this power limit may cause damage to the device or affect its performance.
-
The EQY-8-63+ is a passive device and does not require biasing. However, it is recommended to use a DC block capacitor at the input and output to prevent any DC voltage from affecting the device's performance.
-
The operating temperature range of the EQY-8-63+ is -40°C to +85°C. Operating the device outside this range may affect its performance or reduce its lifespan.
Trust Checks
Community Provided
System Verified
Community Approved
EQY-8-63+ Overview

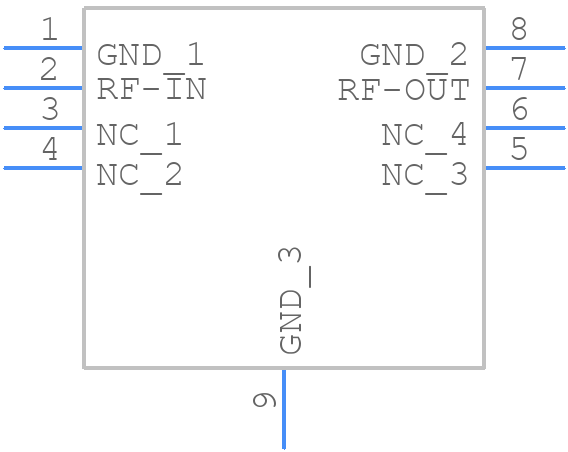

Use the download button to access the EQY-8-63+ schematic symbol, PCB footprint, and 3D model.
