ER422DM4-5B/SQ - Teledyne Technologies

ER422DM4-5B/SQ Details

• Manufacturer Part Number:

  ER422DM4-5B/SQ

• Pbfree Code:

  No

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.20

• Manufacturer:

  Teledyne Technologies Inc

• YTEOL:

  6

• Additional Feature:

  WITH COIL TRANSIENT SUPPRESSION DIODE

• Body Height:

  7.75 mm

• Body Length or Diameter:

  9.4 mm

• Coil Current(DC)-Max:

  0.058 A

• Coil Operate Voltage(DC):

  3.5 V

• Coil Power:

  290 mW

• Coil Release Voltage(DC):

  3.5 V

• Coil Resistance:

  61 Ω

• Coil Voltage(DC)-Max:

  6 V

• Coil Voltage-Nom:

  5 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Rating R Load:

  0.25A@115VAC

• Contact Current(AC)-Max:

  0.25 A

• Contact Current(DC)-Max:

  1 A

• Contact (DC) Max Rating R Load:

  1A@28VDC

• Contact Resistance:

  225 mΩ

• Contact Voltage(AC)-Max:

  115 V

• Contact Voltage(DC)-Max:

  28 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  1000000 Cycle(s)

• Input Switching Control Type:

  Random

• Insulation Resistance:

  10000000000 Ω

• JESD-609 Code:

  e0

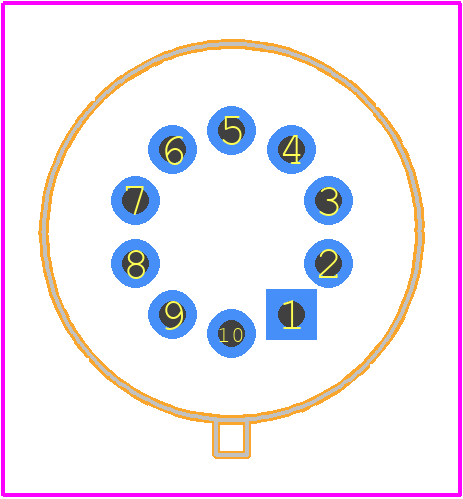

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Terminals:

  10

• Operate Time:

  3.5 ms

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -65 °C

• Physical Dimension:

  9.4mm x 7.75mm

• Relay Action:

  LATCHED

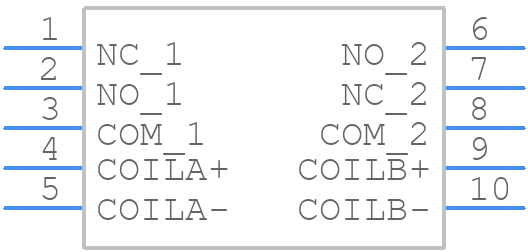

• Relay Form:

  2 FORM C

• Relay Function:

  DPDT

• Relay Type:

  RF RELAY

• Sealing:

  HERMETICALLY SEALED

• Surface Mount:

  NO

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Length:

  0.004699009398018796 inch

• Termination Type:

  SOLDER
