ERA-1SM+ - Mini-Circuits

Description: RF Amplifier SMT Gain Block, DC - 8000 MHz, 50 ohms

Download ERA-1SM+ Model

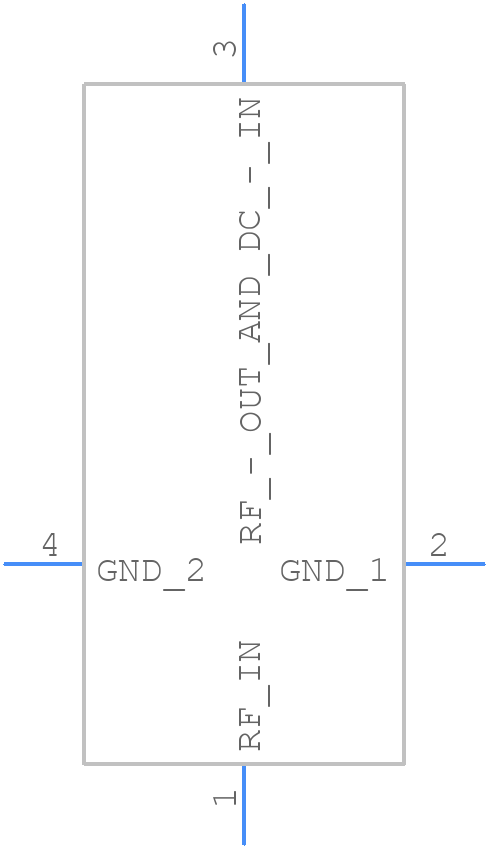

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ERA-1SM+ - Mini-Circuits PCB footprint - Other - Other - ERA-1SM+-5
click to zoom
3D Models
ERA-1SM+ - Mini-Circuits  - 3D model - Other - ERA-1SM+-5
click to zoom

ERA-1SM+ Details

  • Manufacturer Part Number:

    ERA-1SM+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, PLASTIC, CASE WW107, MICRO-X, 4 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.83

  • Additional Feature:

    USABLE TO 10 GHZ

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    10.3 dB

  • Input Power-Max (CW):

    15 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    4

  • Operating Frequency-Max:

    8000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -45 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SL,4GW-LD,.085CIR

  • Power Supplies:

    3 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    40 mA

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.9

ERA-1SM+ Frequently Asked Questions (FAQs)

  • A good grounding scheme is crucial for the ERA-1SM+. Use a solid ground plane, and connect the amplifier's ground pin to the ground plane with a low-inductance path. Keep the input and output traces short and away from each other to minimize coupling.
  • Use a Smith chart or a network analyzer to determine the optimal impedance matching networks for your specific application. The ERA-1SM+ has a 50-ohm input and output impedance, but you may need to adjust the matching networks for optimal power transfer and gain.
  • The ERA-1SM+ is rated for operation up to 85°C, but it's recommended to keep the junction temperature below 70°C for optimal reliability and performance. Ensure good airflow and heat sinking to prevent overheating.
  • Yes, you can use two ERA-1SM+ amplifiers in a push-pull configuration to achieve higher power output. However, you'll need to ensure proper phasing and impedance matching to avoid oscillations and optimize performance.
  • Use a well-regulated power supply, and decouple the amplifier's power pins with capacitors. Keep the input and output cables away from each other and from other noisy signals. Use a shielded enclosure and consider adding EMI filters if necessary.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ERA-1SM+ Overview

Use the download button to access the ERA-1SM+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ERA-1, or try a keyword search, such as RF/Microwave Amplifiers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
