ERA-5SM+ - Mini-Circuits

Description: RF Amplifier IC CATV, Cellular, DBS, PCS, WLAN 0Hz ~ 4GHz

Download ERA-5SM+ Model

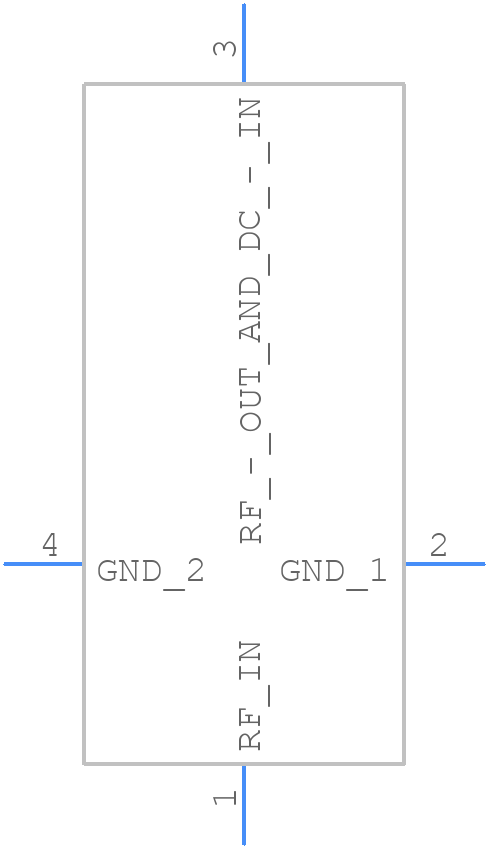

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ERA-5SM+ - Mini-Circuits PCB footprint - Other - Other - ERA-5SM+-1
click to zoom
3D Models
ERA-5SM+ - Mini-Circuits  - 3D model - Other - ERA-5SM+-1
click to zoom

ERA-5SM+ Details

  • Manufacturer Part Number:

    ERA-5SM+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, PLASTIC, CASE WW107, MICRO-X-4

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.64

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    12 dB

  • Input Power-Max (CW):

    13 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    4

  • Operating Frequency-Max:

    4000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -45 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SL,4GW-LD,.085CIR

  • Power Supplies:

    4.2 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    65 mA

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.3
