The recommended land pattern for ERJ12ZYJ390U is a rectangular pad with a size of 1.3mm x 0.8mm, with a non-solder mask defined (NSMD) pad shape. This ensures proper soldering and minimizes the risk of solder bridging.
To handle the high frequency characteristics of ERJ12ZYJ390U, it's essential to use a controlled impedance layout, minimize trace lengths, and avoid sharp corners or bends. Additionally, consider using a ground plane and shielding to reduce electromagnetic interference (EMI).
The maximum operating temperature range for ERJ12ZYJ390U is -55°C to +125°C. However, it's recommended to derate the resistor's power rating according to the temperature coefficient to ensure reliable operation.
Yes, ERJ12ZYJ390U is designed to withstand high-vibration environments. However, it's essential to ensure proper mounting and soldering to prevent mechanical stress and damage. Additionally, consider using a vibration-resistant solder alloy and a secure PCB mounting method.
To ensure the reliability of ERJ12ZYJ390U in a humid environment, it's recommended to use a conformal coating or potting compound to protect the resistor from moisture. Additionally, consider using a moisture-resistant solder alloy and ensuring proper PCB cleaning and drying procedures.
Trust Checks
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ERJ12ZYJ390U Overview

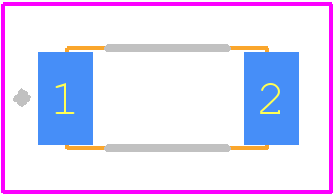

Use the download button to access the ERJ12ZYJ390U schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ERJ12,
or try a keyword search, such as Metal Glaze/Thick Film Resistors
