ERJ1TNF8202U - Panasonic

Description: PANASONIC - ERJ1TNF8202U - RES, 82K, 1%, 1W, 2512, THICK FILM

Download ERJ1TNF8202U Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ERJ1TNF8202U - Panasonic - PCB symbol
click to zoom
PCB Footprints

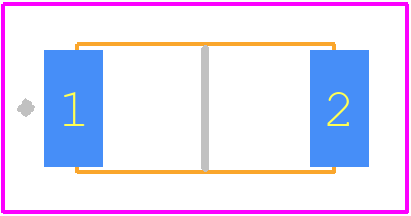

ERJ1TNF8202U - Panasonic PCB footprint - Other - Other - ERJ-1T(2512)
click to zoom
3D Models
ERJ1TNF8202U - Panasonic - 3D model - Other - ERJ-1T(2512)
click to zoom

ERJ1TNF8202U Details

  • Manufacturer Part Number:

    ERJ1TNF8202U

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    3

  • Additional Feature:

    PRECISION

  • Construction:

    Rectangular

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    0.6 mm

  • Package Length:

    6.4 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Package Width:

    3.2 mm

  • Packing Method:

    TR, EMBOSSED, 7 INCH

  • Rated Power Dissipation (P):

    1 W

  • Rated Temperature:

    70 °C

  • Reference Standard:

    AEC-Q200; IEC60115-8

  • Resistance:

    82000 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    2512

  • Surface Mount:

    YES

  • Technology:

    METAL GLAZE/THICK FILM

  • Temperature Coefficient:

    100 ppm/°C

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    1%

  • Working Voltage:

    200 V

ERJ1TNF8202U Frequently Asked Questions (FAQs)

  • The recommended land pattern for ERJ1TNF8202U is a rectangular pad with a size of 1.3mm x 0.8mm, with a non-solder mask defined (NSMD) pad shape. The pad should be centered on the component and have a solder mask clearance of 0.1mm.
  • During reflow soldering, the ERJ1TNF8202U should be placed on a flat surface to prevent tombstoning. The component should be aligned with the PCB pads and the solder paste should be applied evenly. The recommended reflow temperature profile is 250°C for 10-30 seconds.
  • The maximum power rating for ERJ1TNF8202U is 0.25W. It is essential to ensure that the component does not exceed this power rating to prevent overheating and damage.
  • Yes, ERJ1TNF8202U is suitable for high-frequency applications up to 100MHz. However, it is essential to consider the component's self-resonant frequency and ensure that it does not resonate at the operating frequency.
  • ERJ1TNF8202U should be stored in a dry environment with a relative humidity of 60% or less. The component should be stored in its original packaging or in a sealed bag with desiccant to prevent moisture absorption.
