ERJ1TYJ560U - Panasonic

Description: PANASONIC - ERJ1TYJ560U - RES, 56R, 5%, 1W, 2512, THICK FILM

Download ERJ1TYJ560U Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ERJ1TYJ560U - Panasonic - PCB symbol
click to zoom
PCB Footprints

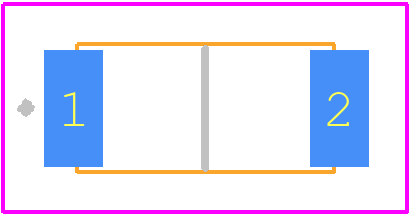

ERJ1TYJ560U - Panasonic PCB footprint - Other - Other - ERJ-1T(2512)
click to zoom
3D Models
ERJ1TYJ560U - Panasonic - 3D model - Other - ERJ-1T(2512)
click to zoom

ERJ1TYJ560U Details

  • Manufacturer Part Number:

    ERJ1TYJ560U

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    3

  • Construction:

    Rectangular

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    0.6 mm

  • Package Length:

    6.4 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Package Width:

    3.2 mm

  • Packing Method:

    TR, EMBOSSED, 7 INCH

  • Rated Power Dissipation (P):

    1 W

  • Rated Temperature:

    70 °C

  • Reference Standard:

    AEC-Q200; IEC60115-8

  • Resistance:

    56 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    2512

  • Surface Mount:

    YES

  • Technology:

    METAL GLAZE/THICK FILM

  • Temperature Coefficient:

    200 ppm/°C

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    5%

  • Working Voltage:

    200 V

ERJ1TYJ560U Frequently Asked Questions (FAQs)

  • The recommended land pattern for ERJ1TYJ560U is a rectangular pad with a size of 1.3mm x 0.8mm, with a non-solder mask defined (NSMD) pad shape. The pad should be centered on the component and have a solder mask clearance of 0.1mm.
  • To handle thermal considerations for ERJ1TYJ560U, ensure that the component is placed on a thermal land with a size of at least 2mm x 2mm, and that the thermal land is connected to a ground plane or a thermal via to dissipate heat efficiently.
  • The maximum power rating for ERJ1TYJ560U is 0.25W, and it is recommended to derate the power by 50% to ensure reliable operation.
  • Yes, ERJ1TYJ560U can be used in high-frequency applications up to 100MHz, but it's recommended to evaluate the component's performance in the specific application and consider the effects of parasitic inductance and capacitance.
  • To ensure the reliability of ERJ1TYJ560U in a humid environment, it's recommended to apply a conformal coating to the component and the PCB, and to follow the recommended storage and handling procedures to prevent moisture absorption.

Trust Checks

This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ERJ1TYJ560U Overview

Use the download button to access the ERJ1TYJ560U schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ERJ1T, or try a keyword search, such as Metal Glaze/Thick Film Resistors
