ERJMS6SF1M0U - Panasonic

Description: Panasonic ERJMS6S Series Metal Plate Current Sensing Surface Mount Resistor 2526 Case 1mΩ ±1% 5W ±75ppm/°C

Download ERJMS6SF1M0U Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ERJMS6SF1M0U - Panasonic - PCB symbol
click to zoom
PCB Footprints

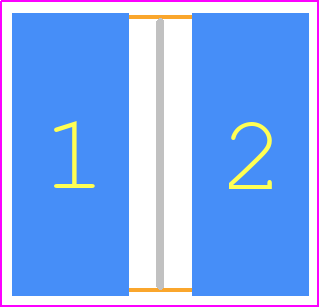

ERJMS6SF1M0U - Panasonic PCB footprint - Resistor Chip - Resistor Chip - ERJMS6S (2526)
click to zoom
3D Models
ERJMS6SF1M0U - Panasonic - 3D model - Resistor Chip - ERJMS6S (2526)
click to zoom

ERJMS6SF1M0U Details

  • Manufacturer Part Number:

    ERJMS6SF1M0U

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    0

  • Construction:

    Rectangular

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    170 °C

  • Operating Temperature-Min:

    -65 °C

  • Package Height:

    1.2 mm

  • Package Length:

    6.4 mm

  • Package Style:

    SMT

  • Package Width:

    6.8 mm

  • Packing Method:

    TR, Embossed, 7 Inch

  • Rated Power Dissipation (P):

    5 W

  • Rated Temperature:

    70 °C

  • Reference Standard:

    AEC-Q200; TS 16949

  • Resistance:

    0.001 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    2526

  • Surface Mount:

    YES

  • Technology:

    METAL PLATE

  • Temperature Coefficient:

    75 ppm/°C

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    1%
