ES9010K2M - ESS Technology

Description: ES9010K2M

Download ES9010K2M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

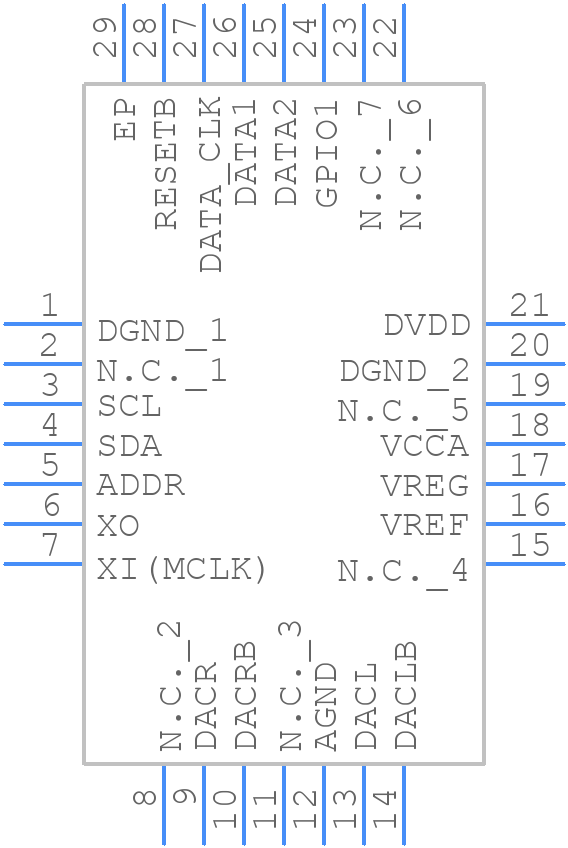

ES9010K2M - ESS Technology - PCB symbol
click to zoom
PCB Footprints
ES9010K2M - ESS Technology PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - ES9010K2Ms
click to zoom
3D Models
ES9010K2M - ESS Technology - 3D model - Quad Flat No-Lead - ES9010K2Ms
click to zoom

ES9010K2M Details

  • Manufacturer Part Number:

    ES9010K2M

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    QFN-28

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Ess Technology Inc

  • Analog Output Voltage-Max:

    1.11 V

  • Analog Output Voltage-Min:

    -1.11 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XQCC-N28

  • Length:

    5 mm

  • Number of Bits:

    32

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

ES9010K2M Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep analog and digital signals separate, and use a common mode filter to reduce EMI.
  • Use a high-quality clock source with low jitter (<100ps) and ensure the clock signal is properly terminated. Use a clock frequency of 256fs or 512fs for optimal performance.
  • Use a combination of ceramic and electrolytic capacitors (e.g., 100nF and 10uF) to decouple the power supply. Place the capacitors close to the device and use a low-ESR capacitor for the analog power supply.
  • Ensure the analog and digital power supplies are properly decoupled and filtered. Use a voltage regulator with low noise and high PSRR to generate the analog power supply (e.g., 3.3V).
  • Use a separate analog ground plane and connect it to the digital ground plane at a single point, preferably near the power supply. Keep the analog ground plane as quiet as possible.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ES9010K2M Overview

Use the download button to access the ES9010K2M schematic symbol, PCB footprint, and 3D model.
