ES9018K2M - ESS Technology

Description: Digital to Analog Converters - DAC Sabre 32 Reference Stereo low power audiophile DAC

Download ES9018K2M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

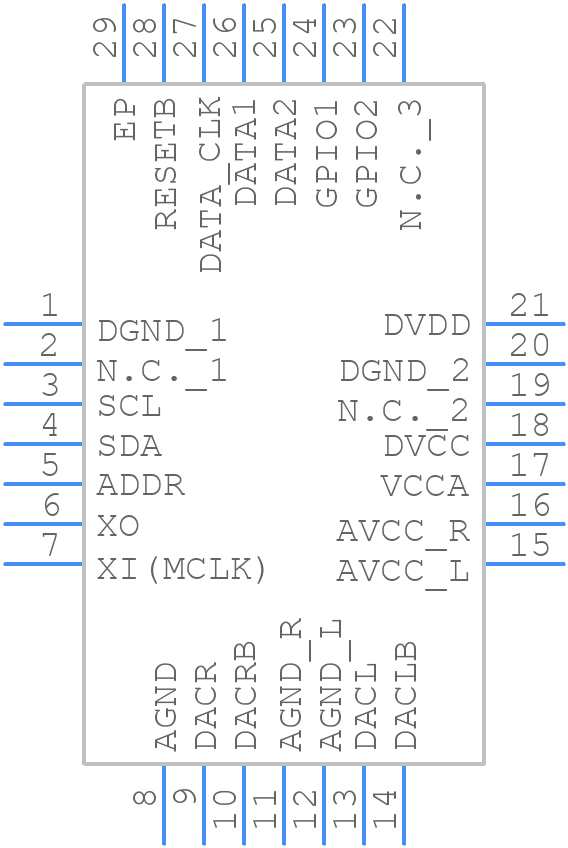

ES9018K2M - ESS Technology - PCB symbol
click to zoom
PCB Footprints
ES9018K2M - ESS Technology PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 28-PIN QFN
click to zoom
3D Models
ES9018K2M - ESS Technology - 3D model - Quad Flat No-Lead - 28-PIN QFN
click to zoom

ES9018K2M Details

  • Manufacturer Part Number:

    ES9018K2M

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    QFN-28

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Ess Technology Inc

  • Analog Output Voltage-Max:

    3.05 V

  • Analog Output Voltage-Min:

    -3.05 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XQCC-N28

  • Length:

    5 mm

  • Number of Bits:

    32

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ES9018K2M Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures proper initialization of the device.
  • To optimize performance in a noisy environment, use a low-pass filter on the analog input, ensure good power supply decoupling, and use a shielded cable for the digital interface.
  • The ES9018K2M supports clock frequencies up to 245.76 MHz, but the recommended frequency is 22.5792 MHz for optimal performance.
  • To configure the ES9018K2M for Master Clock Mode, set the MCLK pin to the desired clock frequency, and ensure the MCLKEN pin is high. The device will then generate the clock signal for the system.
  • For optimal performance, keep the analog and digital signal paths separate, use a ground plane, and minimize the length of the clock signal traces. Also, ensure good power supply decoupling and use a low-ESR capacitor for the VCC pin.
