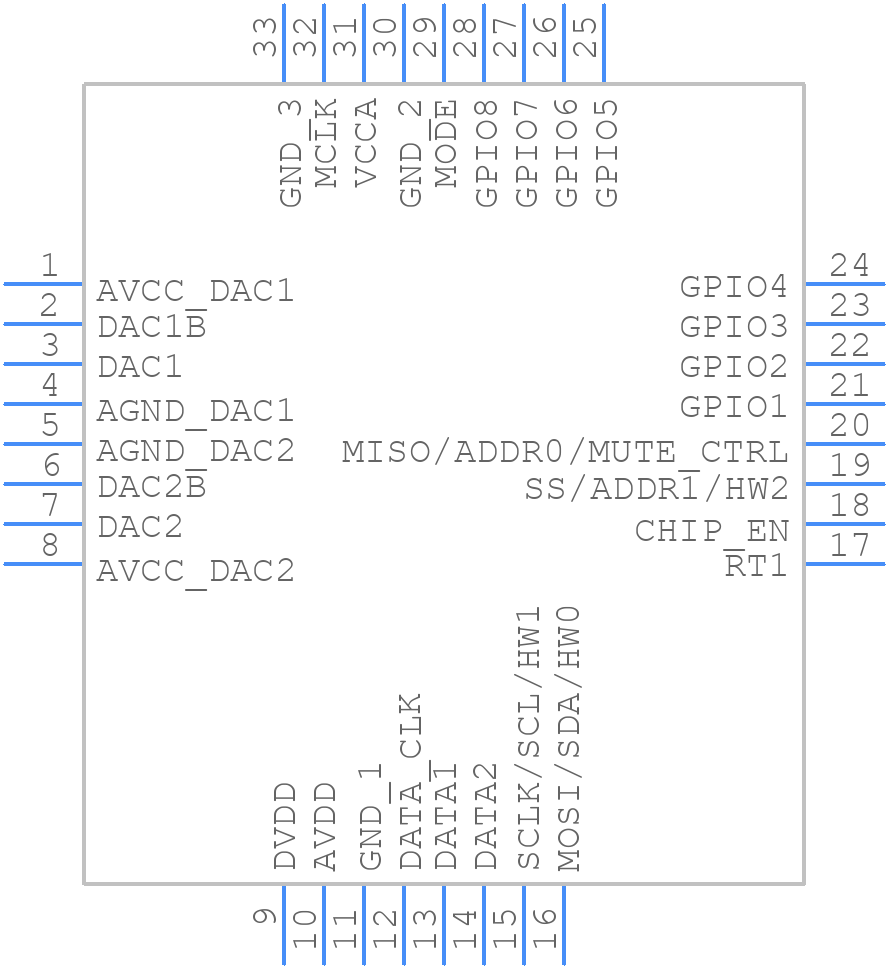

ES9039Q2M - ESS Technology

ES9039Q2M Frequently Asked Questions (FAQs)

• What is the recommended power-up sequence for the ES9039Q2M?
  The recommended power-up sequence is to power up the analog supply (VDDA) first, followed by the digital supply (VDDD), and then the clock signal. This ensures proper initialization of the device.
• How do I optimize the performance of the ES9039Q2M in terms of jitter and noise?
  To optimize performance, use a high-quality clock source, keep the clock signal path as short as possible, and use a low-jitter clock buffer. Additionally, ensure proper power supply decoupling and grounding to minimize noise.
• What is the maximum allowed clock frequency deviation for the ES9039Q2M?
  The maximum allowed clock frequency deviation is ±100 ppm. Exceeding this limit may result in decreased performance or even device malfunction.
• Can I use the ES9039Q2M in a multi-channel audio application?
  Yes, the ES9039Q2M is designed to support multi-channel audio applications. It has eight DAC channels, and each channel can be configured independently to support various audio formats and sampling rates.
• How do I implement digital volume control using the ES9039Q2M?
  The ES9039Q2M has a built-in digital volume control feature. You can control the volume by writing to the appropriate registers using the I2C or SPI interface. Refer to the datasheet for detailed register descriptions and programming information.
