ESD242B1W01005E6327XTSA1 - Infineon

Description: 6V Clamp 4.5A (8/20µs) Ipp Tvs Diode Surface Mount P/PG-WLL-2-2

Download ESD242B1W01005E6327XTSA1 Model

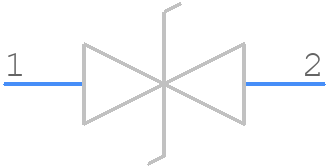

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ESD242B1W01005E6327XTSA1 - Infineon PCB footprint - Other - Other - WLL-2-2-2026
click to zoom

ESD242B1W01005E6327XTSA1 Details

  • Manufacturer Part Number:

    ESD242B1W01005E6327XTSA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Clamping Voltage-Max:

    6.3 V

  • Configuration:

    SINGLE, 1 CHANNEL

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-XBCC-N2

  • Moisture Sensitivity Level:

    1

  • Non-rep Peak Rev Power Dis-Max:

    25 W

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Packing Method:

    TR

  • Polarity:

    BIDIRECTIONAL

  • Reference Standard:

    IEC-61000-4-2, 4-4, 4-5

  • Rep Pk Reverse Voltage-Max:

    3.3 V

  • Reverse Current-Max:

    0.03 µA

  • Reverse Test Voltage:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    BOTTOM

ESD242B1W01005E6327XTSA1 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal performance of ESD242B1W01005E6327XTSA1 involves placing the device close to the protected line, using a ground plane, and minimizing the distance between the device and the protected component. Additionally, it is recommended to use a common ground plane for the ESD protection device and the protected component.
  • The ESD242B1W01005E6327XTSA1 is designed to handle surge pulses according to IEC 61000-4-5. It can withstand surge pulses up to 4 kV and 1.2/50 μs waveform. The device clamps the surge voltage to a safe level, protecting the downstream components from damage.
  • The maximum operating temperature range for ESD242B1W01005E6327XTSA1 is -40°C to 125°C. However, it is recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
  • Yes, the ESD242B1W01005E6327XTSA1 is suitable for ESD protection in automotive applications. It meets the requirements of ISO 7637-2 and is qualified according to AEC-Q101. However, it is recommended to consult with Infineon's application engineers to ensure the device meets the specific requirements of your application.
  • The ESD242B1W01005E6327XTSA1 is designed to have minimal impact on signal integrity. It has a low capacitance of 0.5 pF and a low insertion loss of 0.5 dB, ensuring that the signal quality is maintained. However, it is recommended to simulate the signal integrity using tools like IBIS or S-parameters to ensure the device meets the specific requirements of your application.
