A good PCB layout for optimal ESD protection involves placing the ESD7124MUTBG close to the input ports, using short traces, and minimizing the distance between the device and the protected components. Additionally, a solid ground plane and a low-impedance path to ground can help to reduce the impedance of the discharge path.
To choose the right ESD protection device, consider the following factors: the type and level of ESD protection required, the operating voltage and frequency of the system, the available board space and layout constraints, and the desired level of protection for the downstream components.
The ESD7124MUTBG is a specific device with a unique set of characteristics, such as its low capacitance and high surge capability. Compared to other onsemi ESD protection devices, it may have different features, such as a different number of channels, different voltage ratings, or different package options.
To ensure proper soldering and mounting, follow the recommended soldering profile and handling procedures, and use a soldering iron with a temperature-controlled tip. Also, make sure the PCB is designed with a suitable land pattern and that the device is properly aligned during assembly.
The ESD7124MUTBG is manufactured by onsemi, which has a reputation for producing high-quality and reliable components. The device meets industry standards for reliability and quality, such as AEC-Q101 and IEC 61000-4-2, and is backed by onsemi's warranty and support.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ESD7124MUTBG Overview

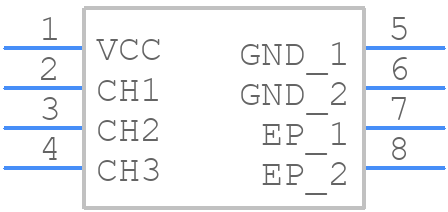

Use the download button to access the ESD7124MUTBG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ESD71,
or try a keyword search, such as Transient Suppressors
