A good PCB layout for ESD8104MUTAG involves keeping the device close to the connector, using a ground plane, and minimizing the length of the signal traces. It's also recommended to use a common ground point for the device and the connector.
The ESD8104MUTAG requires a 3.3V or 5V power supply, and it's essential to ensure a stable power supply with minimal noise and ripple. A decoupling capacitor of 10nF to 100nF should be placed close to the device to filter out high-frequency noise.
The ESD8104MUTAG can support cable lengths up to 3 meters, but the actual length may vary depending on the specific application, cable quality, and signal frequency. It's recommended to test the device with the specific cable and application to determine the maximum supported length.
To troubleshoot ESD protection issues, check the device's pinout and ensure correct connections. Verify that the device is properly powered and grounded. Use an oscilloscope to measure the signal waveform and check for any distortion or noise. If issues persist, consult the datasheet and application notes or contact onsemi support.
The ESD8104MUTAG is rated for operation up to 85°C, but it's essential to consider the device's thermal characteristics and ensure proper heat dissipation in high-temperature environments. Consult the datasheet and application notes for thermal management guidelines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ESD8104MUTAG Overview

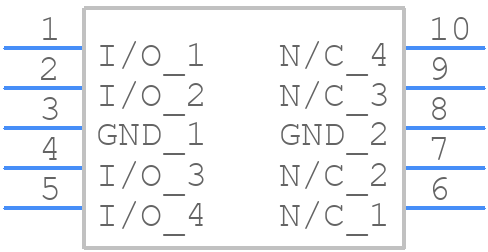

Use the download button to access the ESD8104MUTAG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ESD81,
or try a keyword search, such as Transient Suppressors
