ESD8504GMUTAG - onsemi

Description: Low Capacitance (0.5 pF Max, I/O to GND); Protection for the Following IEC Standards: IEC 61000−4−2 (Level 4); Low ESD Clamping Voltage; These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Download ESD8504GMUTAG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

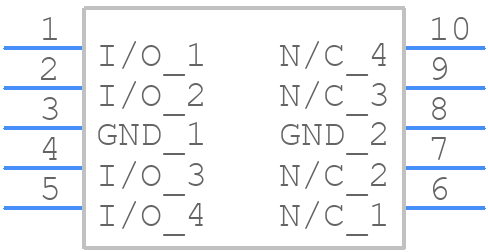

Symbol
ESD8504GMUTAG - onsemi - PCB symbol
click to zoom
PCB Footprints
ESD8504GMUTAG - onsemi PCB footprint - Other - Other - ESD8504GMUTAG-2
click to zoom
3D Models
ESD8504GMUTAG - onsemi - 3D model - Other - ESD8504GMUTAG-2
click to zoom

ESD8504GMUTAG Details

  • Manufacturer Part Number:

    ESD8504GMUTAG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    UDFN-10

  • Package Description:

    UDFN10, 10 PIN

  • Manufacturer Package Code:

    517BB

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Additional Feature:

    LOW CAPACITANCE

  • Breakdown Voltage-Max:

    6 V

  • Breakdown Voltage-Min:

    4 V

  • Breakdown Voltage-Nom:

    4.5 V

  • Case Connection:

    ANODE

  • Clamping Voltage-Max:

    8.5 V

  • Configuration:

    COMMON ANODE, 4 ELEMENTS, 4 CHANNEL

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    4

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Reference Standard:

    IEC-61000-4-2

  • Rep Pk Reverse Voltage-Max:

    3 V

  • Reverse Current-Max:

    1 µA

  • Reverse Test Voltage:

    3 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

ESD8504GMUTAG Frequently Asked Questions (FAQs)

  • A good PCB layout for ESD8504GMUTAG involves keeping the device close to the protected line, using short traces, and minimizing the distance between the device and the connector. A ground plane under the device is also recommended to reduce noise and improve performance.
  • The recommended capacitor value for ESD8504GMUTAG is 1nF to 10nF. The optimal value depends on the specific application, signal frequency, and desired level of protection. A larger capacitor value provides better filtering but may affect signal integrity.
  • The maximum operating temperature for ESD8504GMUTAG is 125°C. However, it's recommended to operate the device within a temperature range of -40°C to 85°C for optimal performance and reliability.
  • Yes, ESD8504GMUTAG is suitable for high-speed data lines up to 10 Gbps. However, it's essential to follow proper PCB layout and design guidelines to minimize signal degradation and ensure optimal performance.
  • To ensure proper soldering, follow the recommended reflow soldering profile, and use a solder paste with a melting point between 217°C to 220°C. Avoid overheating the device, and ensure the PCB is clean and free of contaminants.
