Description:Low ESD Clamping Voltage; IEC61000−4−2 (ESD): Level 4 ±30 kV Contact; These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant; Low Capacitance (0.5 pF Max, I/O to GND); SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable; SZESD8704MTWTAG Wettable Flank Package
A good PCB layout for ESD8704MUTAG involves keeping the device close to the connector, using a ground plane, and minimizing the length of the signal traces. It's also recommended to use a common ground point for the device and the connector.
The ESD8704MUTAG requires a 3.3V or 5V power supply, and it's essential to ensure a stable power supply with minimal noise and ripple. A decoupling capacitor of 10nF to 100nF should be placed close to the device to filter out high-frequency noise.
The ESD8704MUTAG can support cable lengths up to 3 meters, but the actual length may vary depending on the specific application, cable quality, and signal frequency. It's recommended to perform signal integrity simulations to determine the maximum cable length for a specific design.
To troubleshoot ESD protection issues, start by verifying the device is properly powered and grounded. Check for any signs of physical damage or contamination on the device or PCB. Use an oscilloscope to measure the signal integrity and look for any signs of ESD damage, such as signal distortion or ringing.
The ESD8704MUTAG is rated for operation up to 125°C, but it's essential to consider the specific application and environment. High temperatures can affect the device's performance and reliability, so it's recommended to perform thermal simulations and testing to ensure the device operates within its specifications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ESD8704MUTAG Overview

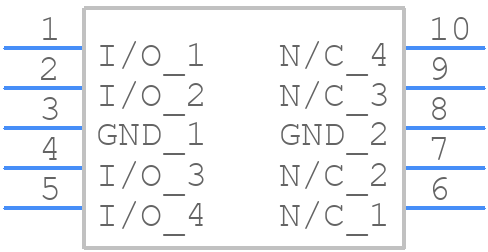

Use the download button to access the ESD8704MUTAG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ESD87,
or try a keyword search, such as Transient Suppressors
