ESDA6V1S3RL - STMicroelectronics

ESDA6V1S3RL Details

• Manufacturer Part Number:

  ESDA6V1S3RL

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOD

• Package Description:

  PLASTIC, SO-20

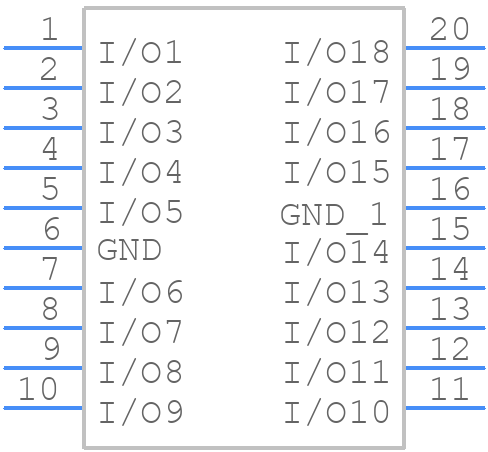

• Pin Count:

  20

• ECCN Code:

  EAR99

• HTS Code:

  8541.10.00.50

• Manufacturer:

  STMicroelectronics

• YTEOL:

  0

• Breakdown Voltage-Max:

  7.2 V

• Breakdown Voltage-Min:

  6.1 V

• Breakdown Voltage-Nom:

  6.65 V

• Configuration:

  COMMON ANODE, 18 ELEMENTS, 18 CHANNEL

• Diode Element Material:

  SILICON

• Diode Type:

  TRANS VOLTAGE SUPPRESSOR DIODE

• Forward Voltage-Max (VF):

  1.25 V

• JESD-30 Code:

  R-PDSO-G20

• JESD-609 Code:

  e4

• Moisture Sensitivity Level:

  3

• Non-rep Peak Rev Power Dis-Max:

  200 W

• Number of Elements:

  18

• Number of Terminals:

  20

• Operating Temperature-Max:

  150 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Polarity:

  UNIDIRECTIONAL

• Qualification Status:

  Not Qualified

• Reference Standard:

  IEC-1000-4-2, MIL-STD-883C

• Rep Pk Reverse Voltage-Max:

  5.25 V

• Reverse Current-Max:

  2 µA

• Reverse Test Voltage:

  5.25 V

• Surface Mount:

  YES

• Technology:

  AVALANCHE

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30
