The recommended PCB layout for optimal ESD protection involves placing the ESDA6V8AV6-6/TR as close as possible to the input pins of the protected device, and ensuring that the PCB traces are as short and wide as possible to minimize impedance and reduce the risk of ESD damage.
The ESDA6V8AV6-6/TR is designed to handle surge currents up to 30A (8/20μs) and can absorb repetitive ESD pulses without degradation, making it suitable for applications that require high surge current protection.
Yes, the ESDA6V8AV6-6/TR is designed to have low capacitance (typically 0.4pF) and low insertion loss, making it suitable for high-speed signal lines up to 6GHz, such as USB, HDMI, and Ethernet.
The ESDA6V8AV6-6/TR has an operating temperature range of -40°C to 125°C, making it suitable for use in a wide range of applications, from consumer electronics to industrial and automotive systems.
Yes, the ESDA6V8AV6-6/TR is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in applications that require environmental compliance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ESDA6V8AV6-6/TR Overview

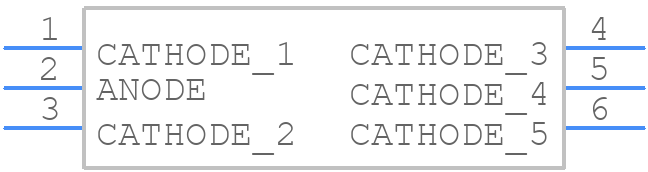

Use the download button to access the ESDA6V8AV6-6/TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ESDA6,
or try a keyword search, such as Transient Suppressors
