A good PCB layout for the ESDALD05UE2X should include a solid ground plane, short traces, and a decoupling capacitor (e.g., 100nF) close to the device. Additionally, ensure that the input and output pins are not routed near each other to minimize crosstalk.
The ESDALD05UE2X has a maximum junction temperature of 150°C. To manage thermal performance, ensure good airflow, use a heat sink if necessary, and avoid high ambient temperatures. You can also consider using thermal interface materials to improve heat dissipation.
The ESDALD05UE2X can withstand surge currents up to 3A (8/20μs) according to the IEC 61000-4-5 standard. However, it's essential to follow proper PCB design and layout guidelines to ensure the device can handle surge currents effectively.
While the ESDALD05UE2X is primarily designed for ESD protection, it can be used in high-frequency applications up to 1GHz. However, you should consider the device's parasitic capacitance (e.g., 0.5pF) and inductance when designing your circuit.
Choose the correct ESDALD05UE2X variant based on your application's specific requirements, such as operating voltage, current rating, and package type. Consult the datasheet and WeEn Semiconductor's documentation for guidance on selecting the appropriate variant.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ESDALD05UE2X Overview

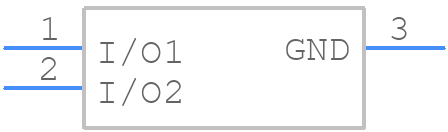

Use the download button to access the ESDALD05UE2X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ESDAL,
or try a keyword search, such as Transient Suppressors
