- Part Number ESK116V-03P
- Manufacturer Dinkle
- Pin Count 6
- Part Category Connector
- Package Category Header, Shrouded - Straight PTH Box

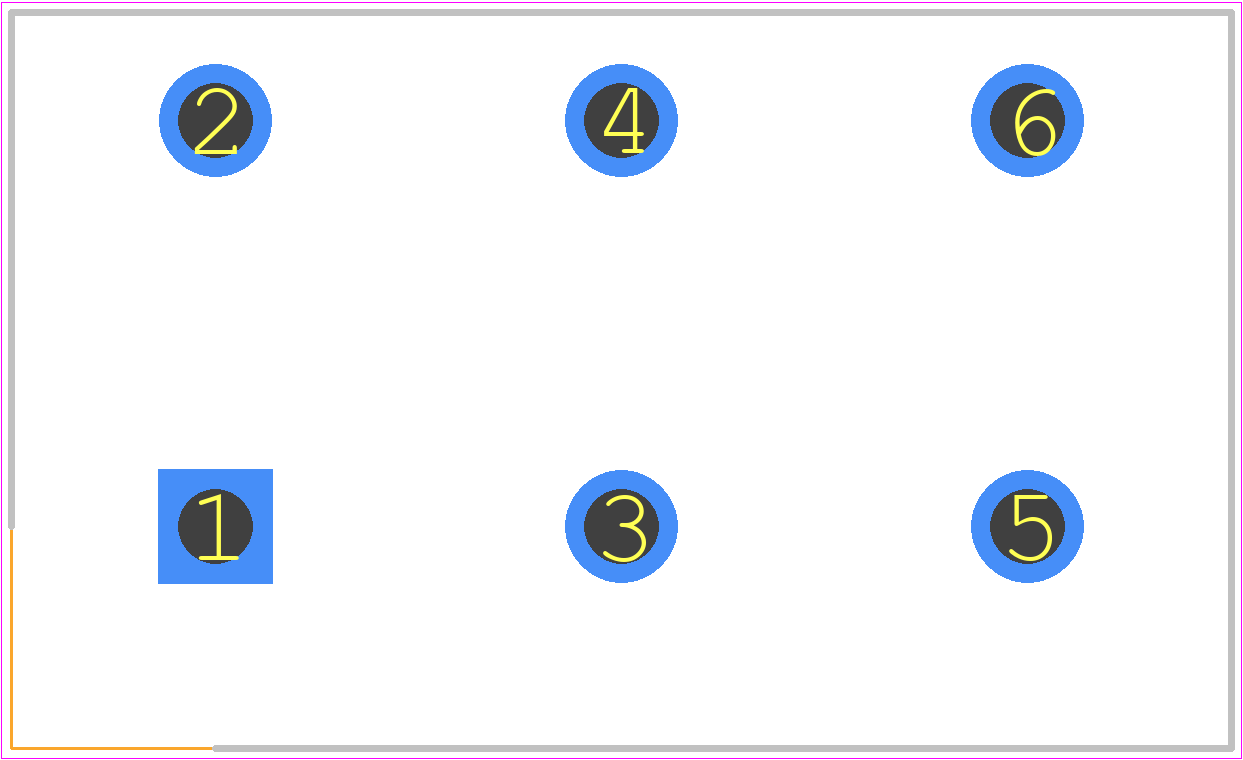

- Footprint Name Header, Shrouded - Straight PTH Box - ESK116V-03P
- Released Date Dec 20, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
ESK116V-03P Details
-
Manufacturer Part Number:
ESK116V-03P
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.90.40.00
-
Manufacturer:
Dinkle Enterprises
-
YTEOL:
6.58
-
Additional Feature:
94V-0; PA
-
Fastening Method:
SCREW
-
Mounting Type:
BOARD
-
Number of Decks:
1
ESK116V-03P Frequently Asked Questions (FAQs)
-
The recommended torque value for the screw terminals of ESK116V-03P is 0.5-0.8 Nm (5-8 in-lbs).
-
Yes, the ESK116V-03P is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) and is suitable for use in high-vibration environments.
-
Yes, the ESK116V-03P meets the UL94-V0 flammability rating, making it suitable for use in applications that require this level of flammability resistance.
-
The ESK116V-03P has an operating temperature range of -40°C to 105°C (-40°F to 221°F).
-
The ESK116V-03P has a moisture resistance rating of IP67, making it suitable for use in humid or wet environments, but not submerged in water.
Trust Checks
Community Provided
System Verified
Community Approved
ESK116V-03P Overview
Use the download button to access the ESK116V-03P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ESK11,
or try a keyword search, such as Terminals and Terminal Blocks
