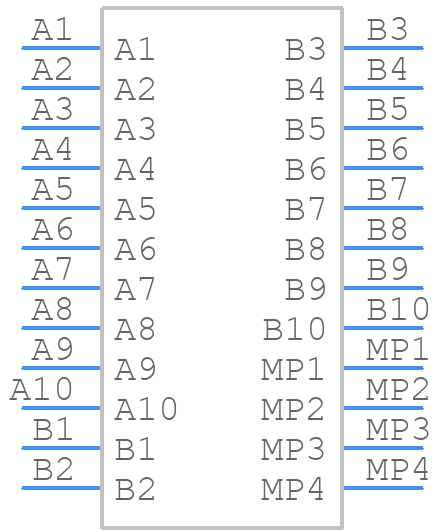

ESMC-F-20-SGR-SMT-T/R - Adam Tech

ESMC-F-20-SGR-SMT-T/R Details

• Manufacturer Part Number:

  ESMC-F-20-SGR-SMT-T/R

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Adam Technologies Inc

• YTEOL:

  9

• Board Mounting Option:

  HOLE 0.063

• Body Breadth:

  0.151 inch

• Body Depth:

  0.422 inch

• Body Length:

  0.7 inch

• Connector Type:

  BOARD STACKING CONNECTOR

• Contact Gender:

  FEMALE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  25 mΩ

• Contact Style:

  SQ PIN-SKT

• Dielectric Withstanding Voltage:

  500VAC V

• Filter Feature:

  NO

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  POLYETHYLENE

• Mating Contact Pitch:

  0.05 inch

• Mating Contact Row Spacing:

  0.05 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  1.27 mm

• Plating Thickness:

  FLASH inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  1.2 A

• Reference Standard:

  UL

• Terminal Pitch:

  1.27 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  20

• UL Flammability Code:

  94V-0
