The recommended storage condition for ESMC-F-80-SGR-SMT-T/R is to store them in a dry, cool place with a temperature range of 20°C to 30°C (68°F to 86°F) and humidity below 60%. Avoid exposing them to direct sunlight, moisture, or extreme temperatures.
While ESMC-F-80-SGR-SMT-T/R is designed to be robust, it's essential to evaluate the specific vibration requirements of your application. Adam Technologies Inc recommends consulting with their technical support team to determine the suitability of ESMC-F-80-SGR-SMT-T/R for high-vibration applications.
The recommended soldering temperature for ESMC-F-80-SGR-SMT-T/R is 260°C (500°F) with a maximum soldering time of 10 seconds. However, it's essential to follow the recommended soldering profile and guidelines provided by Adam Technologies Inc to ensure reliable assembly.
Yes, ESMC-F-80-SGR-SMT-T/R components are RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the requirements of the European Union's directives for environmental sustainability.
The typical lead time for ESMC-F-80-SGR-SMT-T/R components may vary depending on the quantity, availability, and shipping location. It's recommended to contact Adam Technologies Inc or an authorized distributor for the most up-to-date lead time information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ESMC-F-80-SGR-SMT-T/R Overview

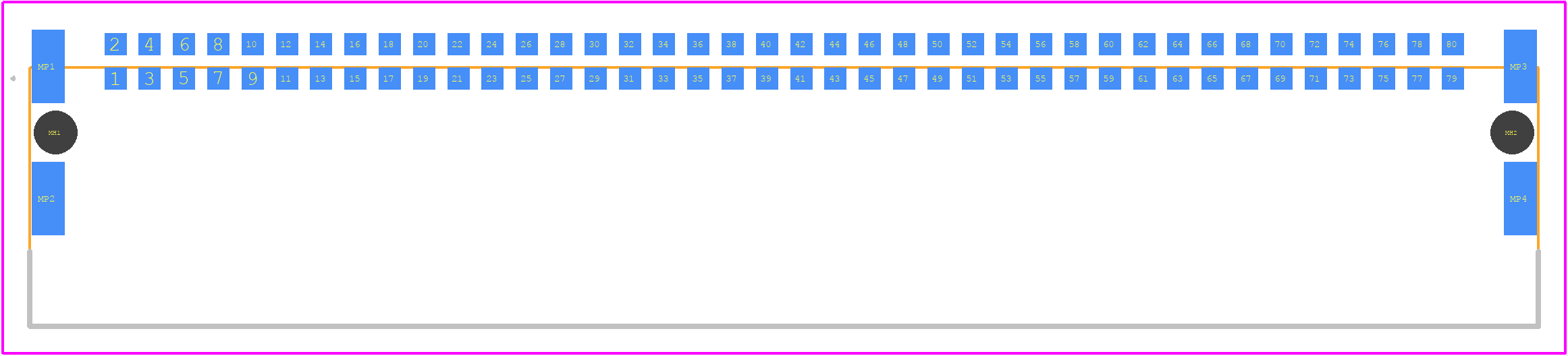

Use the download button to access the ESMC-F-80-SGR-SMT-T/R schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ESMC-,
or try a keyword search, such as Headers and Edge Type Connectors
