ESQ-114-34-G-T footprint, schematic symbol and 3D model by SAMTEC

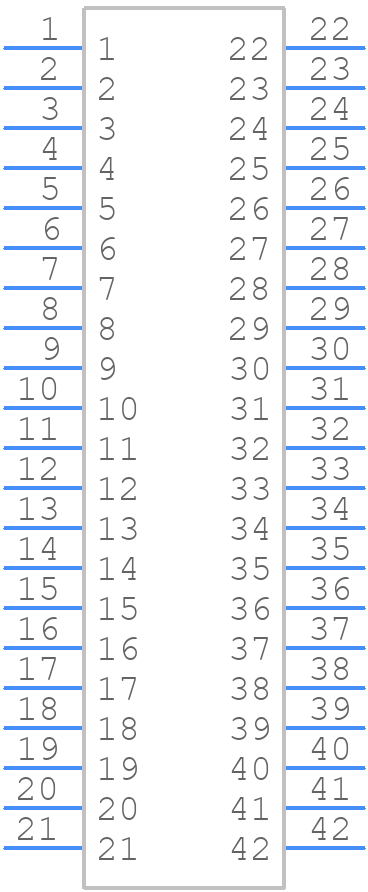

Symbol

click to zoom

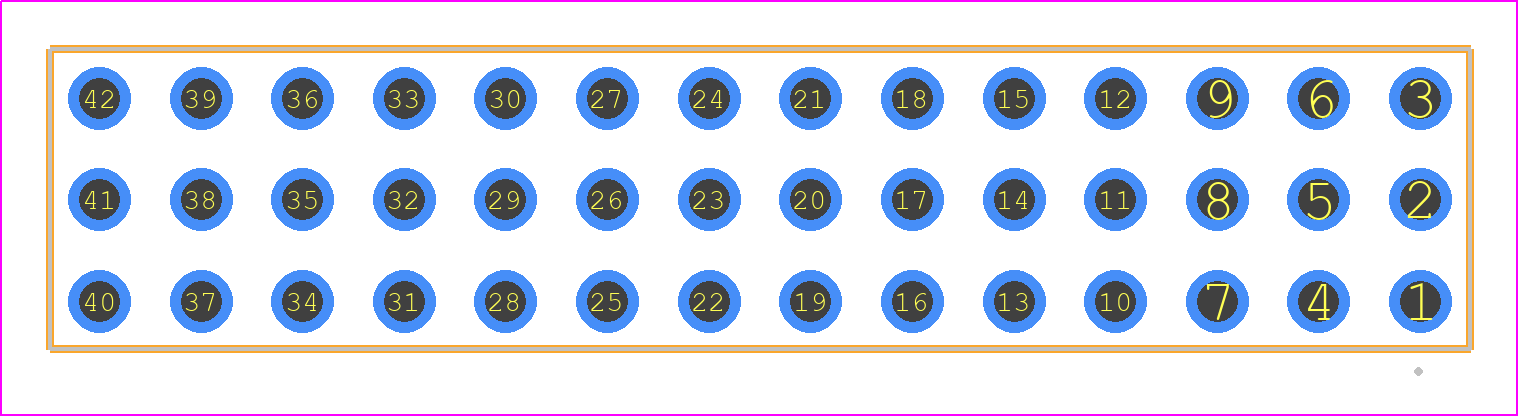

PCB Footprints

ESQ-114-34-G-T - SAMTEC PCB footprint - Other - Other - ESQ-114-Y-X-T

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ESQ-114-34-G-T
Part Number ESQ-114-34-G-T
Manufacturer SAMTEC
Pin Count 42
Part Category Connector
Package Category Other
Footprint Name Other - ESQ-114-Y-X-T
Released Date Jun 19, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ESQ-114-34-G-T Details

Manufacturer Part Number:
ESQ-114-34-G-T
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
9.1
Additional Feature:
RATED CURRENT(POWER): 5.7A
Body Breadth:
0.295 inch
Body Depth:
0.635 inch
Body Length:
1.42 inch
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD (20) OVER NICKEL (50)
Contact Finish Termination:
Gold (Au) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
PHOSPHOR BRONZE
Contact Pattern:
RECTANGULAR
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Durability:
100 Cycles
Filter Feature:
NO
IEC Conformance:
NO
Insertion Force-Max:
4.4 N
Insulator Color:
BLACK
Insulator Material:
GLASS FILLED POLYESTER
JESD-609 Code:
e4
MIL Conformance:
NO
Mating Contact Pitch:
0.1 inch
Mating Contact Row Spacing:
0.1 inch
Mating Information:
MULTIPLE MATING PARTS ARE AVAILABLE
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
3
Number of Rows Loaded:
3
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
2.54 mm
Plating Thickness:
20u inch
Rated Current (Signal):
6.9 A
Reference Standard:
UL
Terminal Length:
0.28 inch
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
42
UL Flammability Code:
94V-0

ESQ-114-34-G-T Frequently Asked Questions (FAQs)

The recommended torque for the screws on the ESQ-114-34-G-T connector is 1.5-2.5 in-lbs (0.17-0.28 Nm) according to Samtec's application notes.
Yes, the ESQ-114-34-G-T connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 1, Class B vibration standard, which ensures reliable performance in demanding applications.
Yes, the ESQ-114-34-G-T connector is designed for automated assembly and is compatible with pick-and-place machines. Its compact design and tape-and-reel packaging facilitate efficient assembly and reduce production costs.
The ESQ-114-34-G-T connector has an operating temperature range of -40°C to +125°C, making it suitable for a wide range of applications, from consumer electronics to industrial and automotive systems.
The ESQ-114-34-G-T connector has a moisture sensitivity level (MSL) rating of 1, which means it can withstand normal humidity levels. However, it's not designed for immersion in water or exposure to extreme humidity. For wet or humid environments, consider using a connector with a higher MSL rating or additional sealing measures.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

ESQ-114-34-G-T Overview

Use the download button to access the ESQ-114-34-G-T schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like ESQ-1, or try a keyword search, such as Headers and Edge Type Connectors
