ESQT-130-03-G-Q-310 - SAMTEC

Description: Conn Elevated Socket SKT 120 POS 2mm Solder ST Top Entry Thru-Hole Tube

Download ESQT-130-03-G-Q-310 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ESQT-130-03-G-Q-310 - SAMTEC - PCB symbol
click to zoom
PCB Footprints

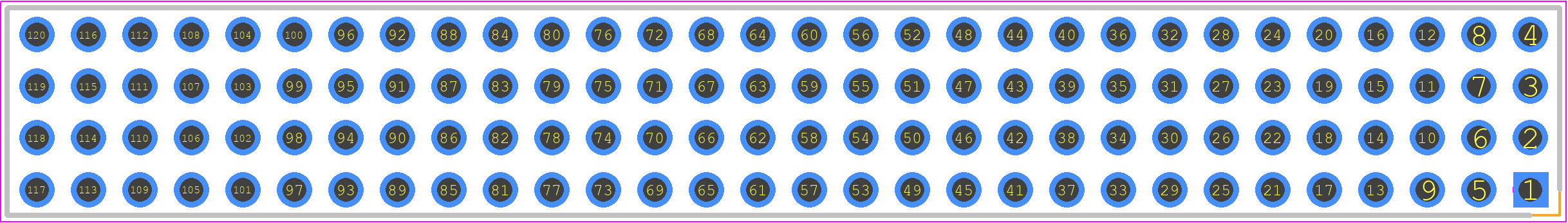

ESQT-130-03-G-Q-310 - SAMTEC PCB footprint - Header, Receptacle - Straight PTH Box - Header, Receptacle - Straight PTH Box - ESQT-130-03-G-Q-310
click to zoom
3D Models
ESQT-130-03-G-Q-310 - SAMTEC - 3D model - Header, Receptacle - Straight PTH Box - ESQT-130-03-G-Q-310
click to zoom

ESQT-130-03-G-Q-310 Details

  • Manufacturer Part Number:

    ESQT-130-03-G-Q-310

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    France, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    3 Weeks, 3 Days

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8

  • Additional Feature:

    FLEXYZ

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD (20) OVER NICKEL (50)

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    4

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    4.5 A

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    120

ESQT-130-03-G-Q-310 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks on ESQT-130-03-G-Q-310 is 1.5-2.5 in-lbs (0.17-0.28 Nm) as per Samtec's application notes.
  • Yes, ESQT-130-03-G-Q-310 is designed to withstand high-vibration environments. Samtec's testing shows that it can survive up to 20 Gs of vibration in the Z-axis and 10 Gs in the X- and Y-axes.
  • The maximum operating temperature for ESQT-130-03-G-Q-310 is 125°C (257°F) as per Samtec's specifications. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures.
  • Yes, ESQT-130-03-G-Q-310 is compatible with lead-free soldering processes. Samtec's connectors are designed to meet the requirements of RoHS and WEEE directives.
  • The mating cycle life of ESQT-130-03-G-Q-310 is rated for a minimum of 500 mating cycles as per Samtec's testing and validation procedures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ESQT-130-03-G-Q-310 Overview

Use the download button to access the ESQT-130-03-G-Q-310 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ESQT-, or try a keyword search, such as Headers and Edge Type Connectors
