ESQT-150-02-GF-Q-310 - SAMTEC

Description: Headers & Wire Housings 2.00 mm FleXYZ Flexible Elevated Socket Strip

Download ESQT-150-02-GF-Q-310 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ESQT-150-02-GF-Q-310 - SAMTEC - PCB symbol
click to zoom
PCB Footprints

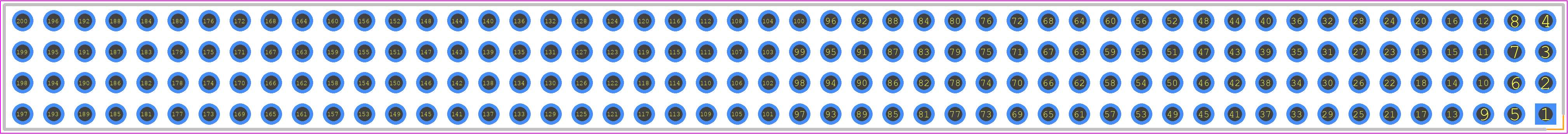

ESQT-150-02-GF-Q-310 - SAMTEC PCB footprint - Header, Receptacle - Straight PTH Box - Header, Receptacle - Straight PTH Box - ESQT-150-02-GF-Q-310
click to zoom
3D Models
ESQT-150-02-GF-Q-310 - SAMTEC - 3D model - Header, Receptacle - Straight PTH Box - ESQT-150-02-GF-Q-310
click to zoom

ESQT-150-02-GF-Q-310 Details

  • Manufacturer Part Number:

    ESQT-150-02-GF-Q-310

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    6 Weeks, 6 Days

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8

  • Additional Feature:

    FLEXYZ

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    GOLD (15) OVER NICKEL (50)

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    4

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    4.5 A

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    200

ESQT-150-02-GF-Q-310 Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the ESQT-150-02-GF-Q-310 connector is 0.5-1.5 N·m (4-12 in·lb) according to Samtec's application notes.
  • Yes, the ESQT-150-02-GF-Q-310 connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper mounting and screw torque to ensure reliable operation.
  • Yes, the ESQT-150-02-GF-Q-310 connector is compatible with lead-free soldering processes. Samtec recommends following their soldering guidelines and using a soldering temperature of 260°C (500°F) or lower.
  • The maximum operating temperature of the ESQT-150-02-GF-Q-310 connector is 125°C (257°F) according to Samtec's datasheet.
  • The ESQT-150-02-GF-Q-310 connector is not designed for use in humid or wet environments. Samtec recommends using a connector with a higher IP rating or applying a conformal coating to protect the connector from moisture.
